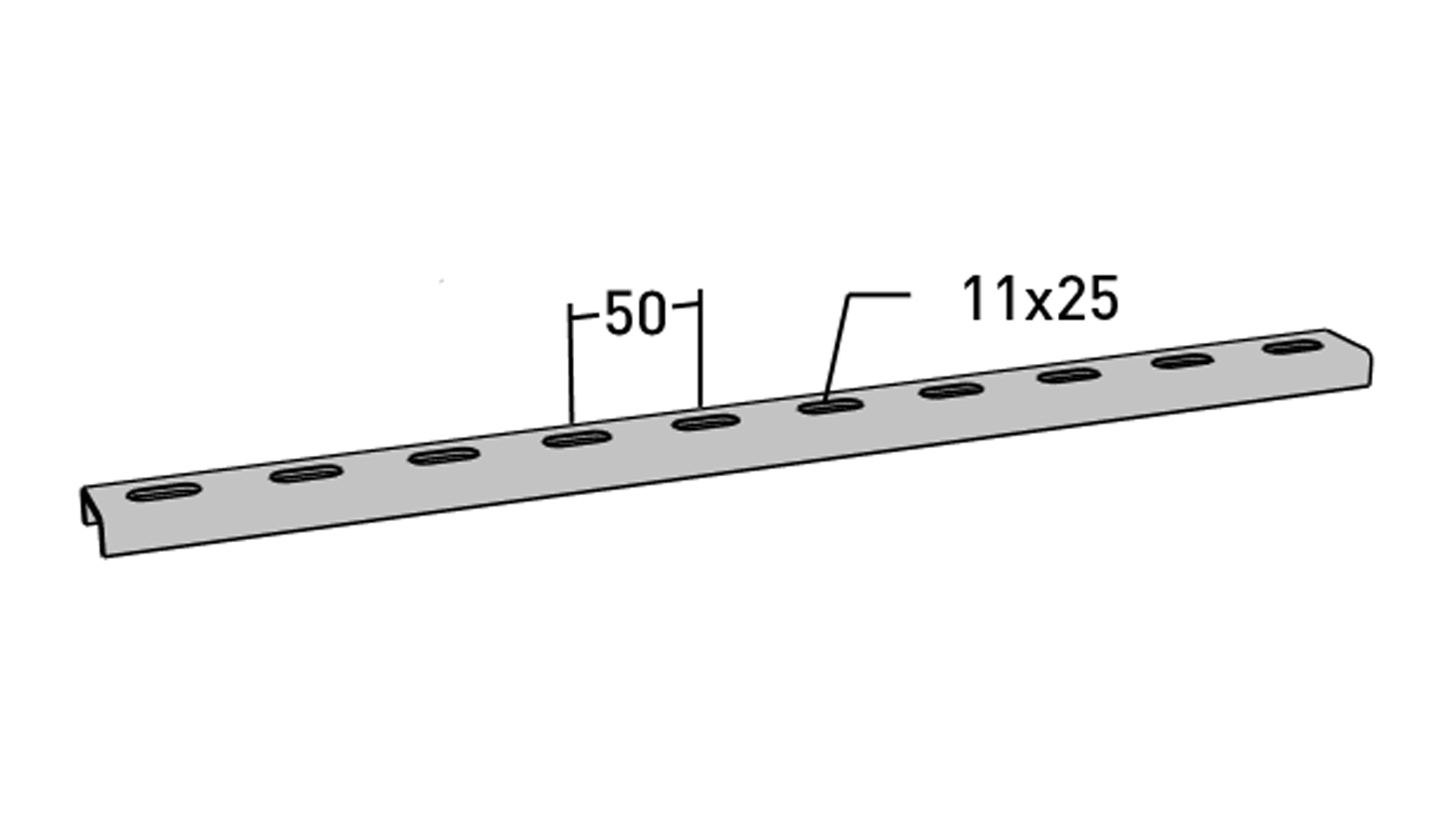

Gate support 200 mm L=300 mm

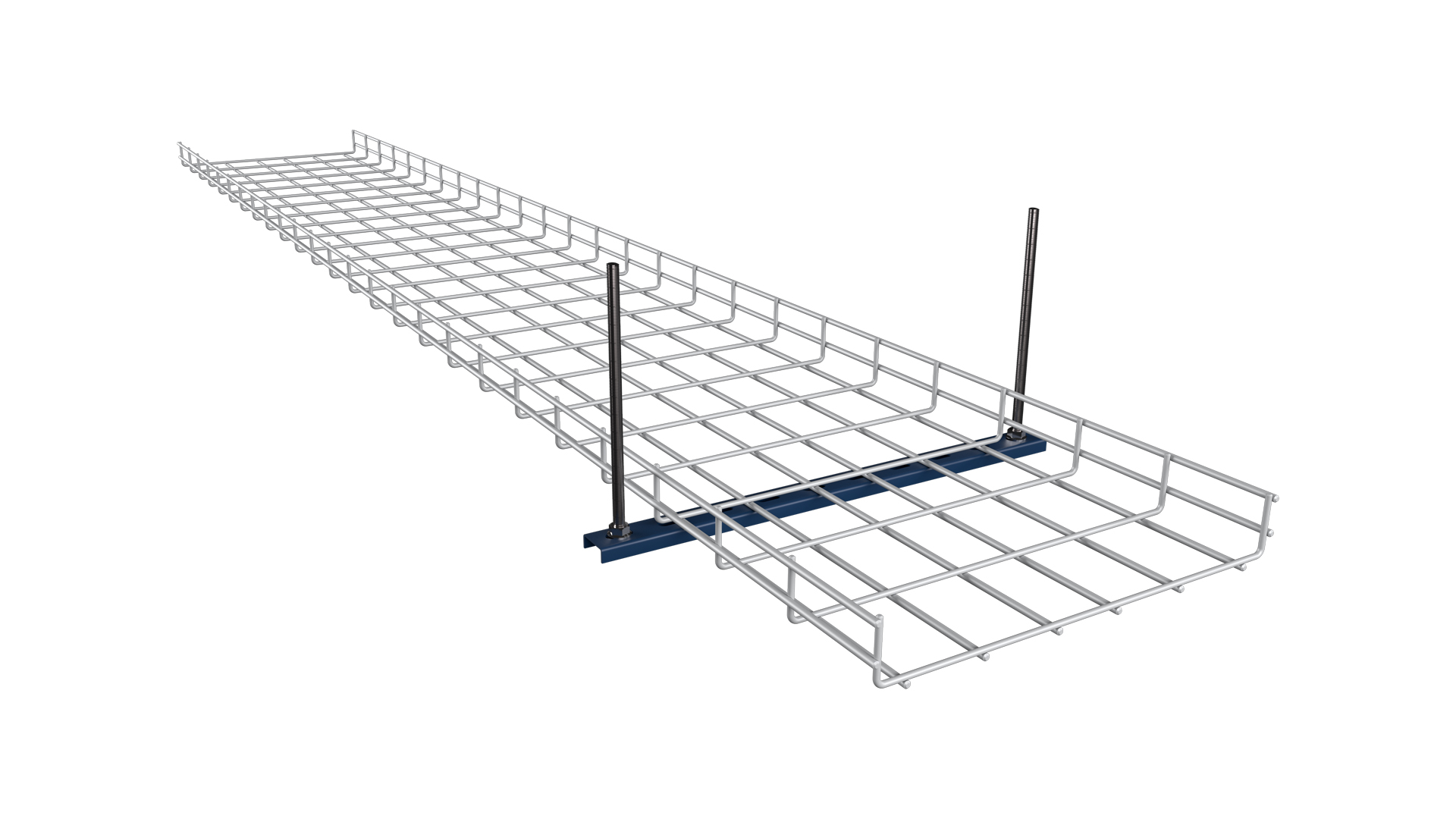

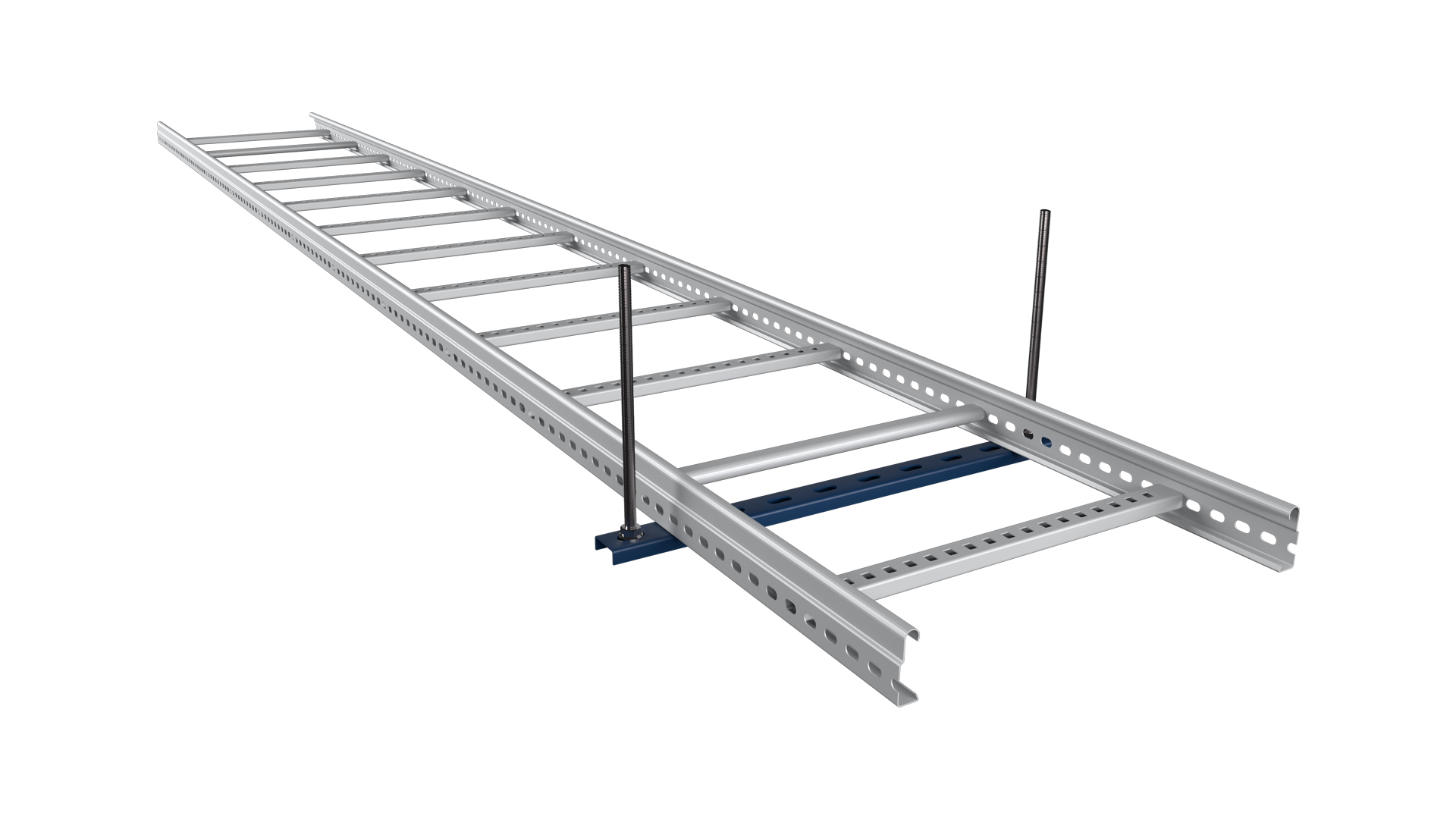

Gate support compatible with all cable ladders, wire mesh trays and cable trays from 200 mm width and upwards. The support is made of acid-proof steel and is suitable for use in environmental class C5-M. It has a low height of only 14 mm, making it ideal for confined spaces. For mounting on cable ladders and wire mesh trays, use bolt set M8x16 (11 157 80) and universal washer (11 165 36). The bracket is used together with threaded rod M10 (11 175 59) and lock nut M10 (11 175 63).
