Product details

E-no
MP-no163S2
EAN 7394333022826
Dimensions (dxwxh)310x82x38
Weight kg0.41
SurfaceGalvanized sheet 20 µm
Environment class C2
Climate impact (kgCO2e)1.10

Support yoke, ladder 300 mm

E-no MP-no 163S2

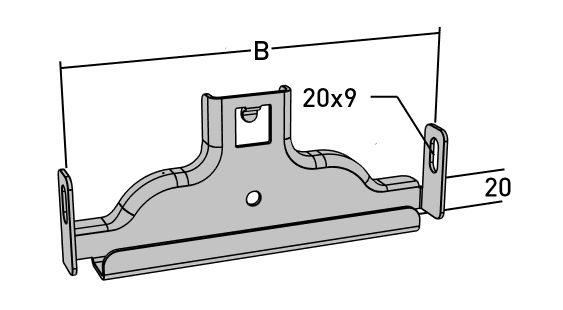

External support yoke that fits all cable ladders from MP bolagen (except stainless-steel and acid-resistant models). The support yoke is made of Sendzimir galvanised sheet (20 µm) and is suitable for environmental class max C2. Low construction height: only adds 20 mm below the ladder. To fix to cable ladder when using pendant rail, use bolt set M8x16 (11 157 11). To fit to ceiling pendant with 21 mm deep anchor rail, use bolt set M8x40 mm (11 157 84), and for 41 mm deep use bolt set M8x60 mm (11 157 86). Max load 240 kg. Ultimate failure load: more than or equal to 1.7 times the maximum load.

Environment class

C2
SurfaceGalvanized sheet 20 µm

Choose Surface

  • Galvanized sheet 20 µm
  • Hot-dip galvanized 60 µmSwitch variant
  • White
Suitable for 300

Choose Suitable for

  • 200
  • 300
  • 400
  • 500
  • 600
MountingExternal

Choose Mounting

  • External
  • Internal
