Product details
E-no
MP-no164Z2
EAN 7394333007922
Dimensions (dxwxh)410x82x38
Weight kg0.59
SurfaceHot-dip galvanized 60 µm
Environment class C4

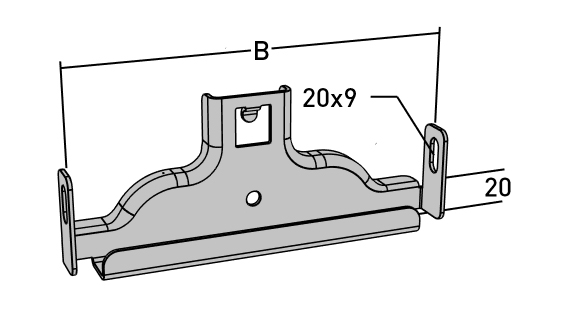

Support yoke, ladder 400 mm
E-no MP-no 164Z2
External support yoke that fits all our cable ladders except the stainless models. Only adds 20 mm below the ladder. To secure on the cable ladder and with use of pendant rail use 11 156 80. For installation on ceiling anchor rail type MP-DV, -FDV use 11 157 84 or 11 157 86. Ultimate failure load: greater than or equal to 1.7 times the maximum load.
Environment class
SurfaceHot-dip galvanized 60 µm
Choose Surface
- Galvanized sheet 20 µmSwitch variant
- Hot-dip galvanized 60 µm
- WhiteSwitch variant
Suitable for 400
Choose Suitable for
- 200
- 300
- 400
- 500
- 600
MountingExternal
Choose Mounting
- External
- Internal
