Support yoke, ladder 500 mm

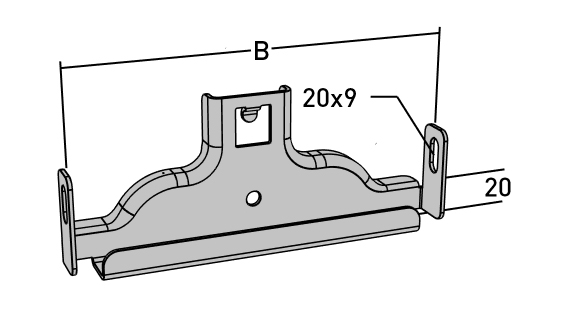

External support yoke that fits all cable ladders from MP bolagen (except stainless-steel and acid-resistant models). The support yoke is made of hot-dip galvanised sheet (60 µm) and is suitable for environmental class max C4. Low construction height: only adds 20 mm below the ladder. To fix to cable ladder when using pendant rail, use bolt set M8x16 (11 156 80). To fit to ceiling pendant with 21 mm deep anchor rail, use bolt set M8x40 mm (11 157 84), and for 41 mm deep use bolt set M8x60 mm (11 157 86). Max load 280 kg. Ultimate failure load: more than or equal to 1.7 times the maximum load.
