Cable ladder 3 m 300 mm

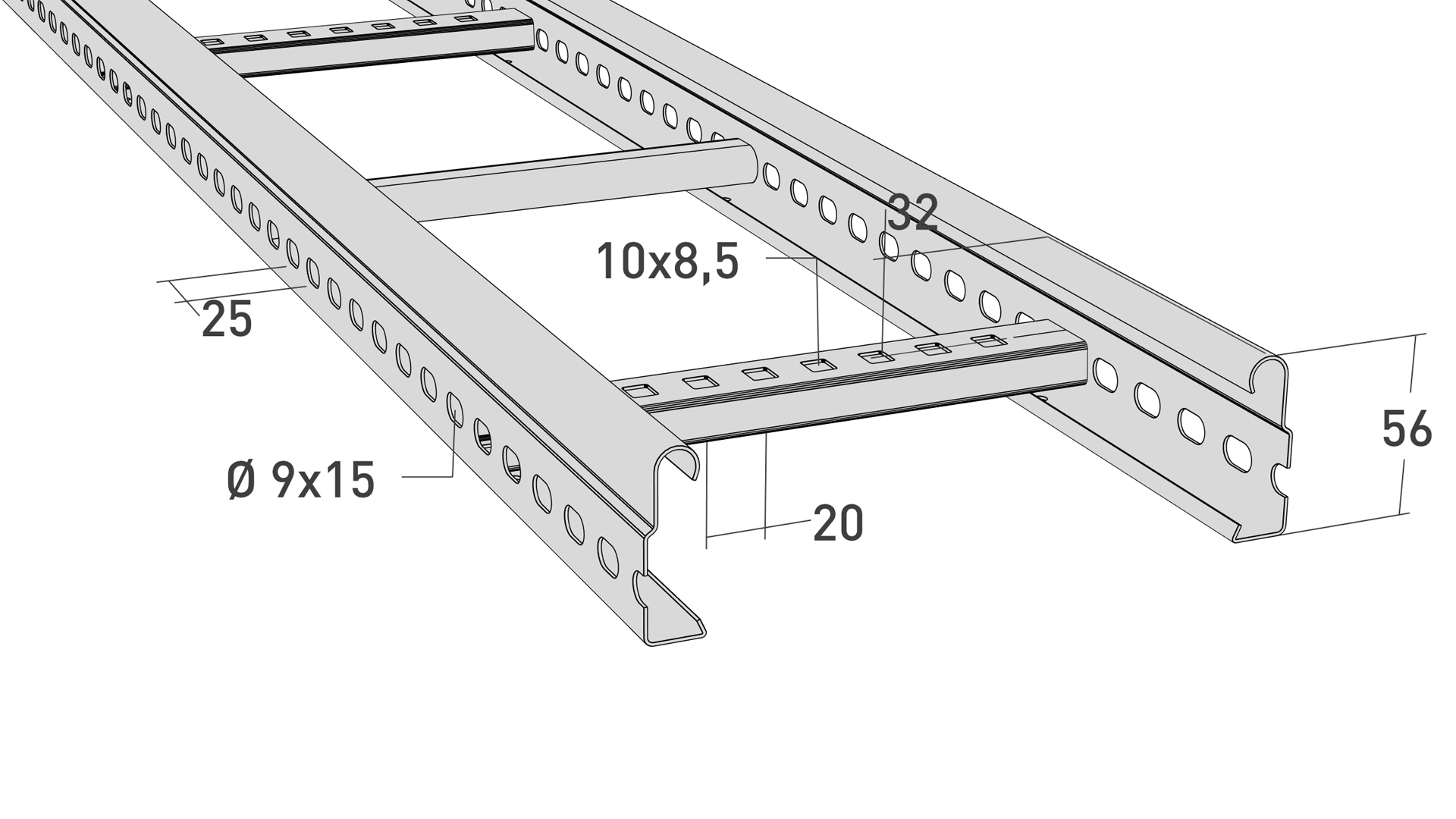

MP-PZ is a hot-dip galvanized (60 µm) 3 m cable ladder that can be used in environmental class max C4. Perforated rungs where the second rung at each end is closed. The perforated side allows the assembly of junctions, angle brackets, etc. The shape of the profile allows cables up to 19 mm in diameter to use over 98% of the width of the cable ladder. Rung distance: c-c 250 mm. Ultimate failure load: more than or equal to 1.7 times the maximum load.
