Product details
E-no
MP-no107V
EAN 7394333912950

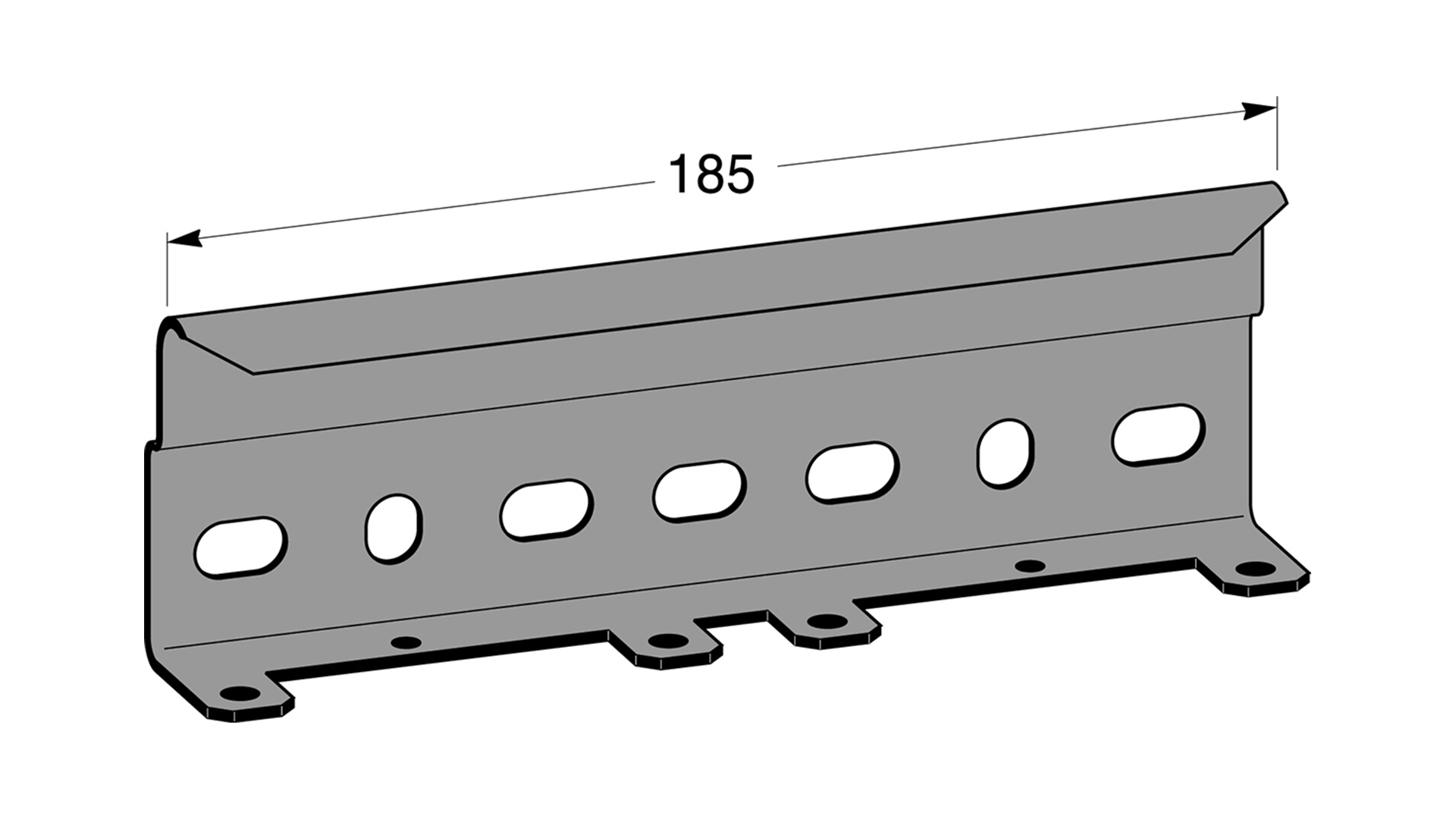

Dimensions (dxwxh)185x35x60
Weight kg0.19
SurfaceWhite
Environment class C2
Package pieces10
Climate impact (kgCO2e)0.49
Joint for ladder
E-no MP-no 107V

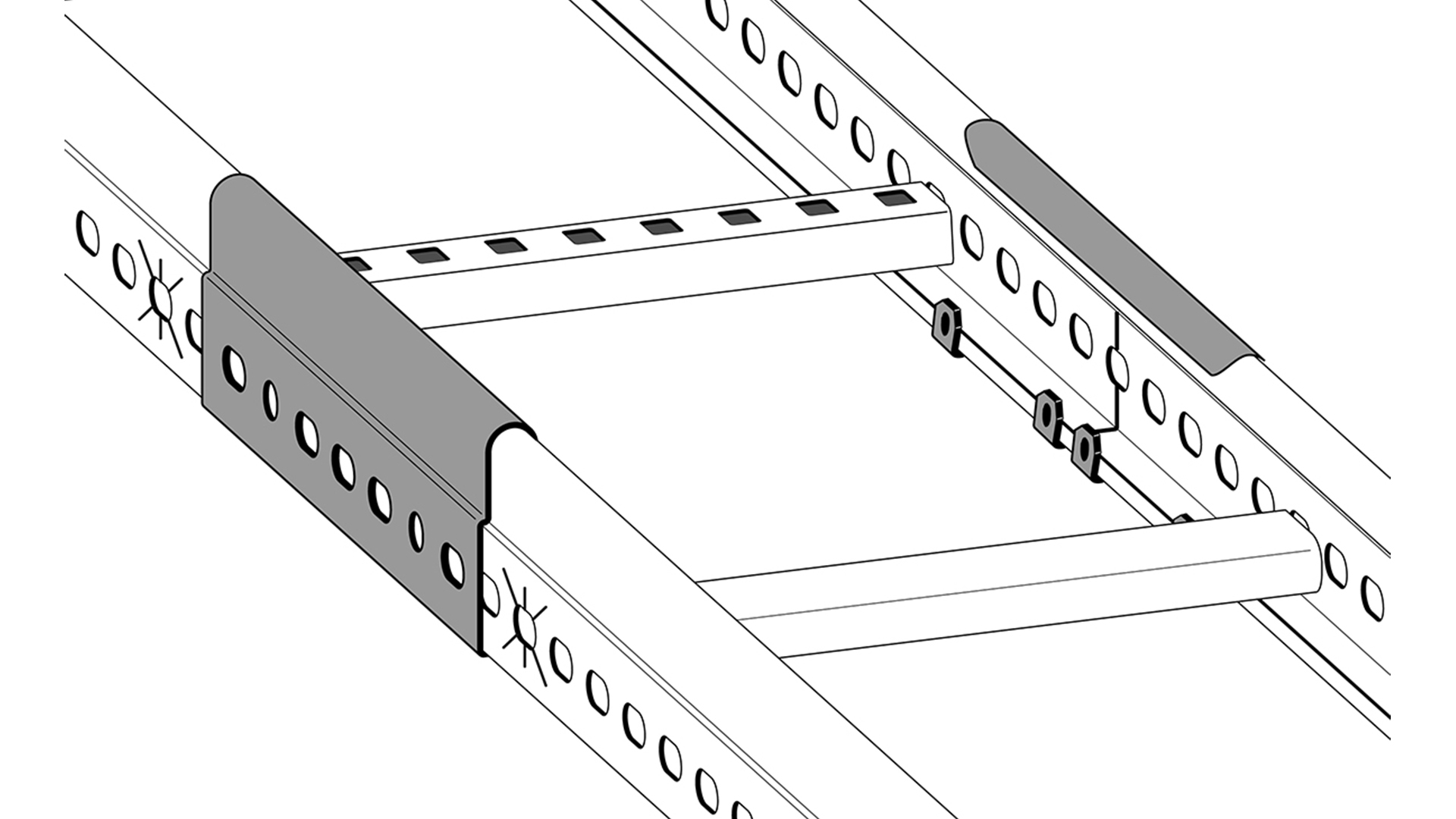

White-painted external ladder splice for splicing cable ladders (not reinforced). The splice is made of powder-coated sheet metal and is suitable for environmental class max C2. Fixing can be done easily by folding up the tongues around the side of the rungs, or with bolt set M8x16. Meets requirements for equipotential bonding according to SS-EN 61537:2007.
Environment class
SurfaceWhite
Choose Surface
- Galvanized sheet 20 µm
- Hot-dip galvanized 60 µmSwitch variant
- White
- Z4Switch variant
Suitable for Cable ladder
Choose Suitable for
- Cable ladder
- Pendant railSwitch variant
- ReinforcedSwitch variant
Mounting methodExternal
Choose Mounting method
- External
- InternalSwitch variant
ModelStraight
Choose Model
- 45°Switch variant
- Straight
- Straight internalSwitch variant
