Product details
E-no
MP-no201Z
EAN 7394333013343

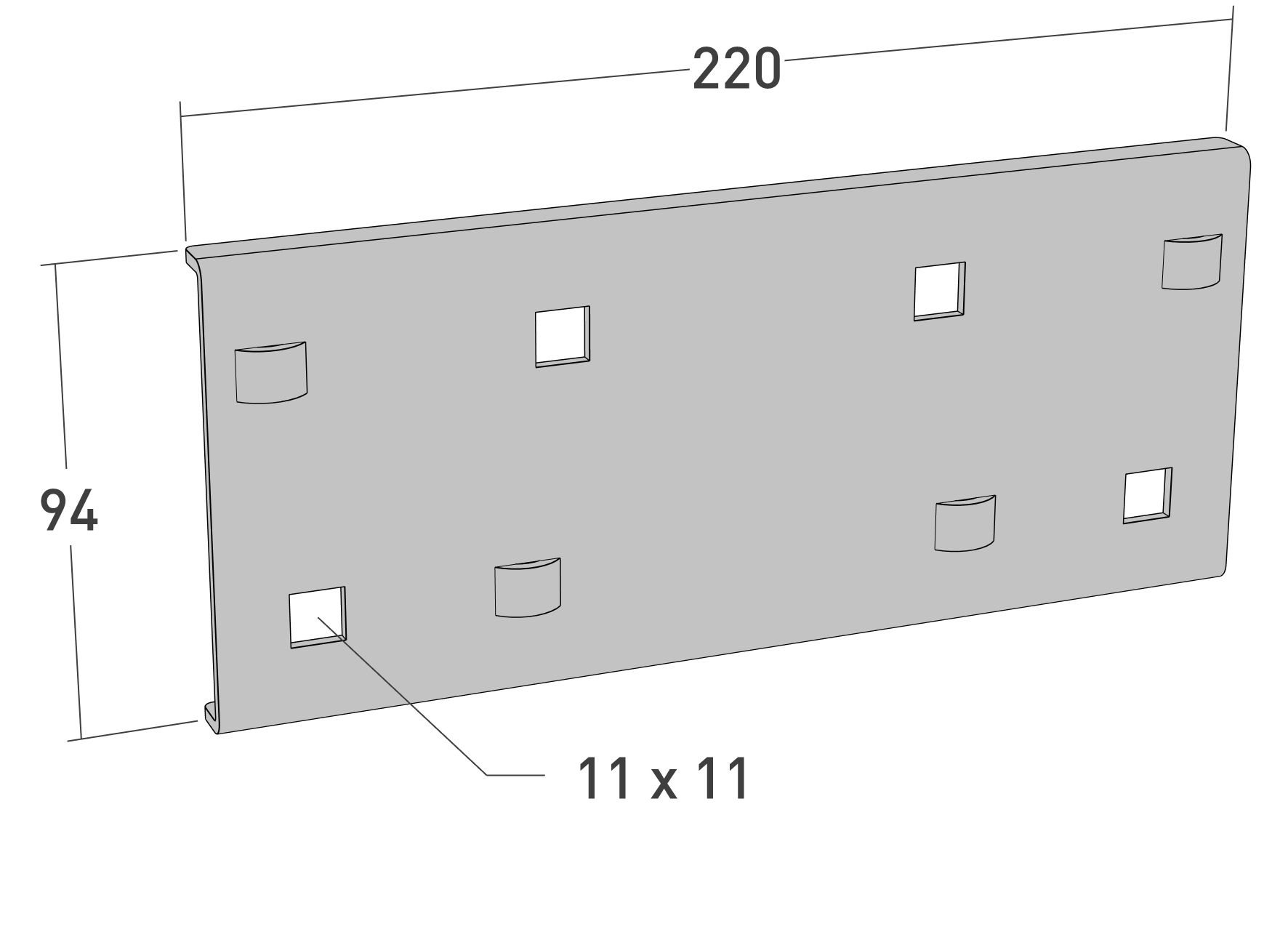

Dimensions (dxwxh)220x95x15
Weight kg0.5
SurfaceHot-dip galvanized 60 µm
Environment class C4
Downloads

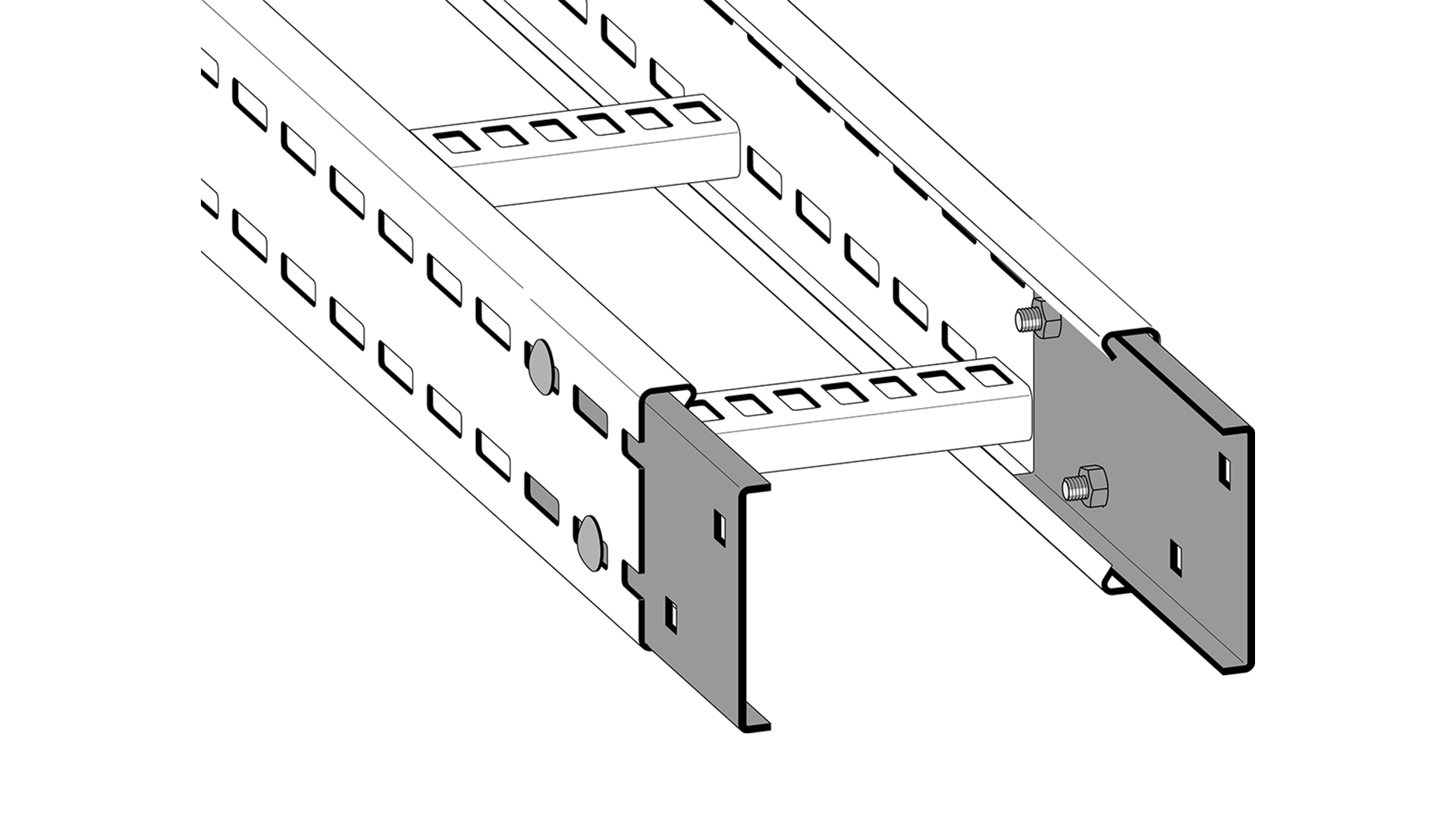

Splice FZ ladders
E-no MP-no 201Z
Meets requirements for equipotential bonding according SS-EN 61537:2007. Use 4 x MP-947 Z-bolts (11 155 85) per splice.
Environment class
SurfaceHot-dip galvanized 60 µm
Choose Surface
- Galvanized sheet 20 µmSwitch variant
- Hot-dip galvanized 60 µm
- WhiteSwitch variant
- Z4Switch variant
Suitable for Reinforced
Choose Suitable for
- Cable ladderSwitch variant
- Pendant railSwitch variant
- Reinforced
Mounting methodInternal
Choose Mounting method
- ExternalSwitch variant
- Internal
ModelStraight
Choose Model
- 45°
- Straight
- Straight internal
