Product details
E-no
MP-no932Z
EAN 7394333116266

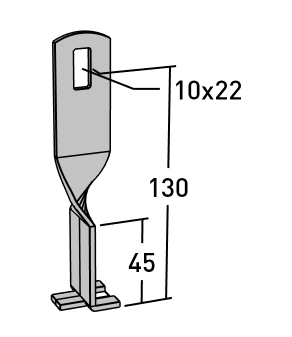

Dimensions (dxwxh)30x30x148
Weight kg0.15
SurfaceHot-dip galvanized 60 µm
Environment class C4
Package pieces10
Climate impact (kgCO2e)0.42
Pendant bracket tray 50-75 mm
E-no MP-no 932Z

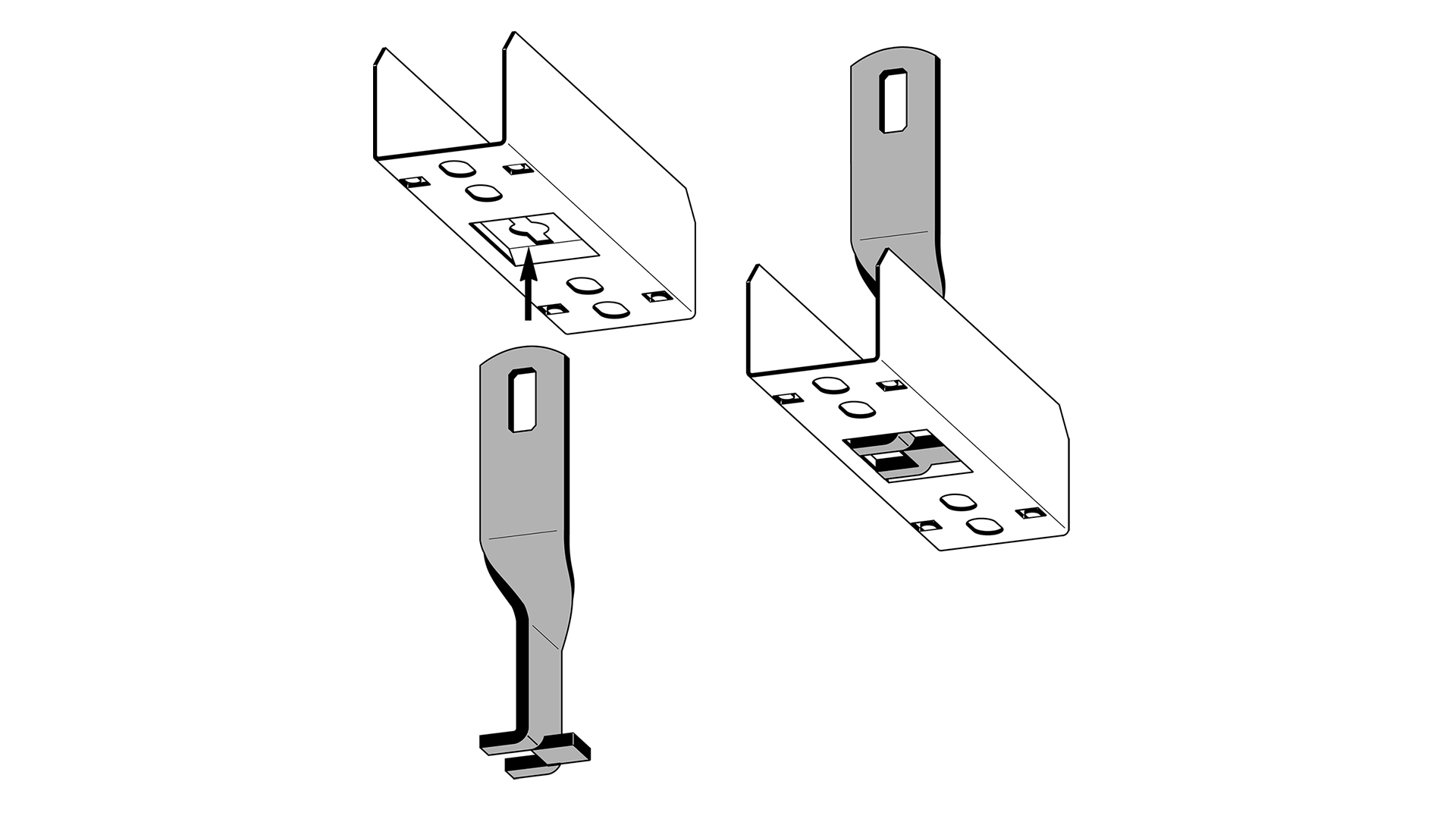

Pendant bracket for centrally suspended support yokes for cable trays and luminaire rails with a width of 50–75 mm. The pendant bracket is made of hot-dip galvanised steel (60 µm) and is suitable for environmental class max C4. Install in an internal splice or support yoke by inserting the pendant bracket under the splice/support yoke and then fixing with bolt set M8x16 mm (11 156 80) to a pendant rail.
Environment class
SurfaceHot-dip galvanized 60 µm
Choose Surface
- Electro-galvanized 10 µmSwitch variant
- Galvanized sheet 20 µmSwitch variant
- Hot-dip galvanized 60 µm
- NCS S 0500-NSwitch variant
- RAL 9005Switch variant
Suitable for 50–75 mm
Choose Suitable for
- 100–600 mmSwitch variant
- 50–75 mm
- 75 mm
