Product details
E-no
MP-no980S
EAN 7394333156507
Dimensions (dxwxh)48x65x20
Weight kg0.1
SurfaceGalvanized sheet 20 µm
Environment class C2
Package pieces10
Climate impact (kgCO2e)0.27
Universal bracket 40-60 mm
E-no MP-no 980S

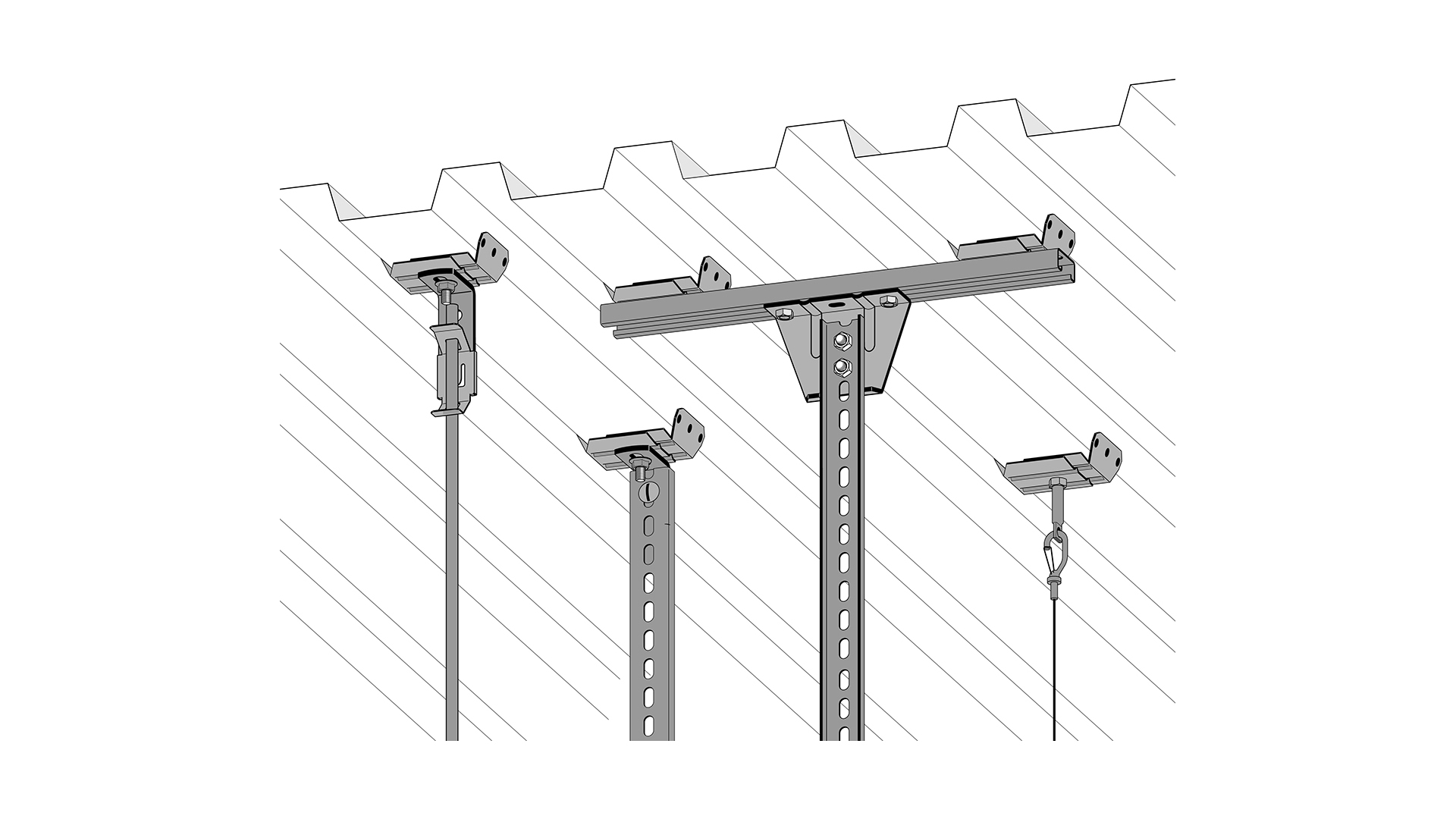

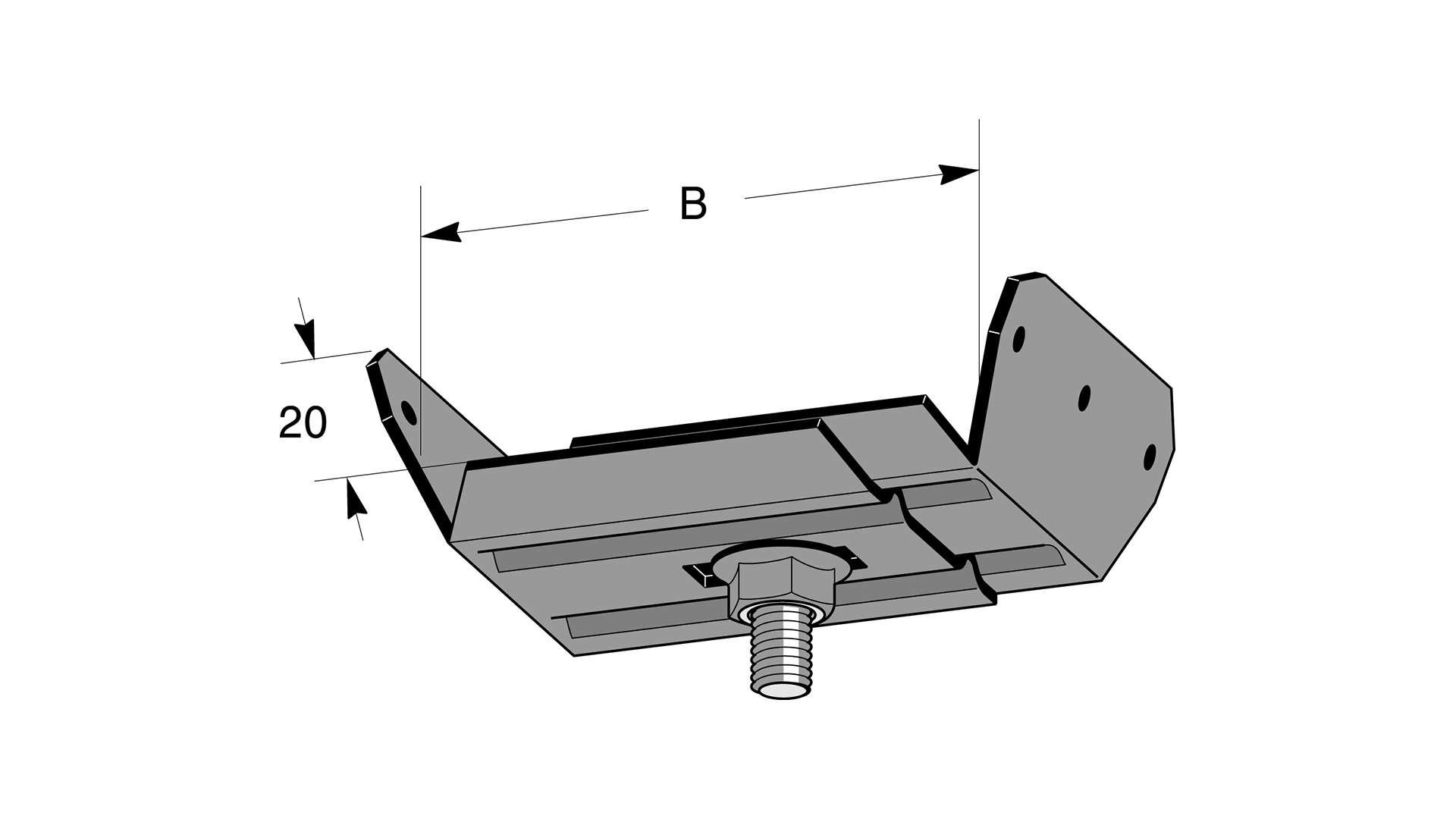

The bracket for corrugated sheets is suitable for ridge bottoms with width B. In its split state and in combination with the support bracket, the bracket fits all ridge bottoms. The mounting angle has three holes with a diameter of Ø 4.2 mm, intended for 4 mm blind rivets or self-drilling sheet metal screws, not countersunk, of suitable length. Maximum load: 125 kg. Breaking load: equal to or greater than 1.7 times the maximum load. To determine the maximum load capacity of the fastening, consult the supplier's load values for roof sheeting and blind rivets/sheet metal screws.
Environment class
SurfaceGalvanized sheet 20 µm
Choose Surface
- Electro-galvanized 10 µmSwitch variant
- Galvanized sheet 20 µm
- Hot-dip galvanized 55 µmSwitch variant
- NCS S 0500-NSwitch variant
Measurement40–60 mm
Choose Measurement
- -Switch variant
- 40–60 mm
- 60–95 mm
- 95–150 mm
