Product details
E-no
MP-no314S
EAN 7394333119007

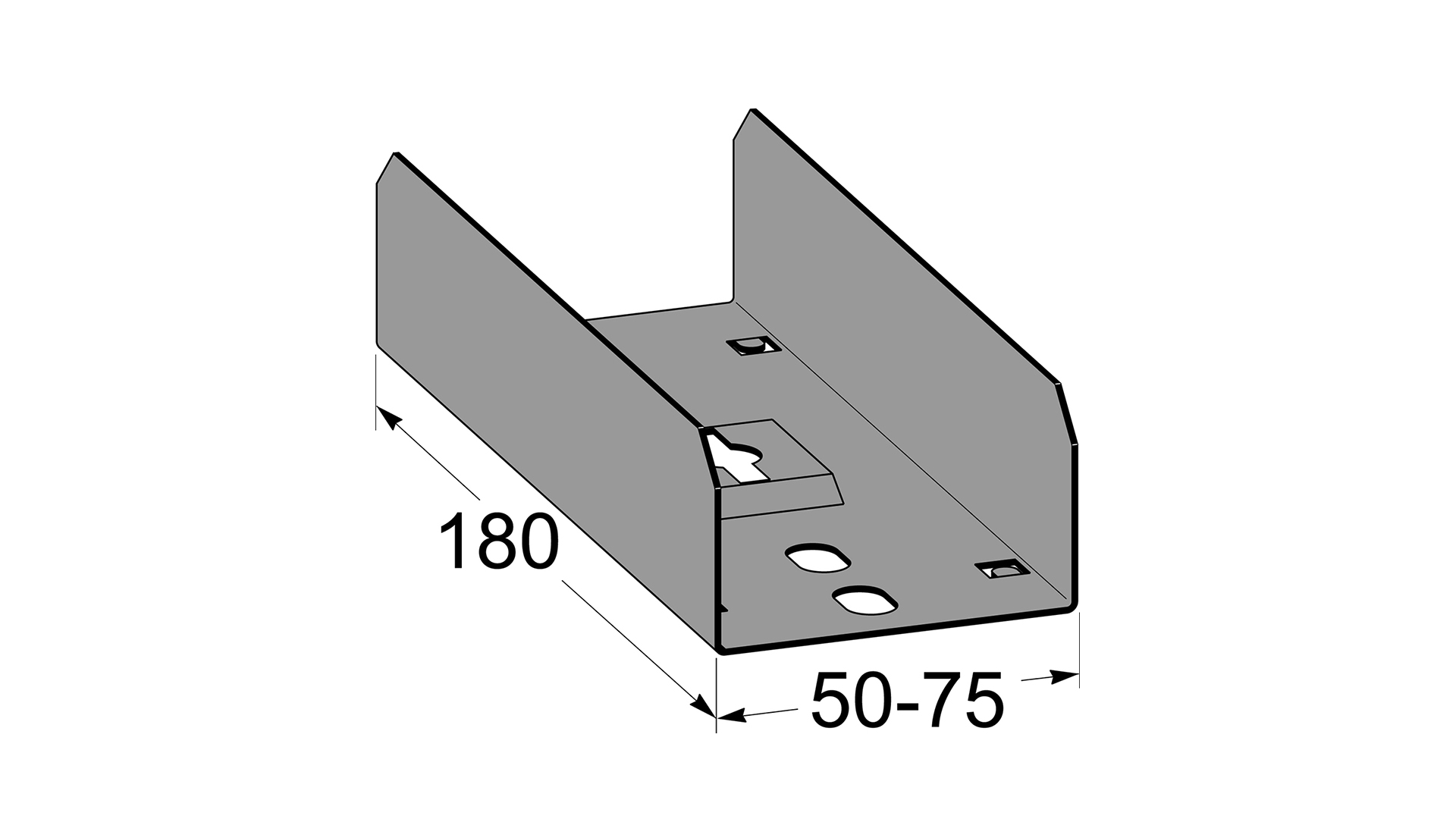

Dimensions (dxwxh)180x72x42
Weight kg0.26
SurfaceGalvanized sheet 20 µm
Environment class C2
Package pieces10
Climate impact (kgCO2e)0.70
Tray splice 75 mm
E-no MP-no 314S
Splice for cable tray and luminaire rail for centrally suspended assembly. Made of Sendzimir galvanised sheet (20 µm) and suitable for environmental class max C2. Built-in friction locks prevent the splice from slipping out of the rail, but can be supplemented with bolt set M8x16 mm (11 157 11) for extra security. The pendant bracket is inserted under the splice before it is mounted in the rail. Maximum load for the support yoke in the splice: 150 kg with an evenly distributed load. Ultimate failure load: 1.7 times maximum load.
Environment class
SurfaceGalvanized sheet 20 µm
Choose Surface
- Electro-galvanized 10 µmSwitch variant
- Galvanized sheet 20 µm
- Hot-dip galvanized 60 µmSwitch variant
- WhiteSwitch variant
- Z4Switch variant
Suitable for 75
Choose Suitable for
- 100
- 150
- 200
- 300
- 400
- 50
- 500
- 600
- 75
- Pendant railSwitch variant
- Perforated cable traySwitch variant
- Threaded rodSwitch variant
Mounting methodInternal
Choose Mounting method
- ExternalSwitch variant
- Internal
