Product details
E-no
MP-no935S
EAN 7394333135977
Dimensions (dxwxh)75x40x19
Weight kg0.05
SurfaceGalvanized sheet 20 µm
Environment class C2
Package pieces10
Downloads

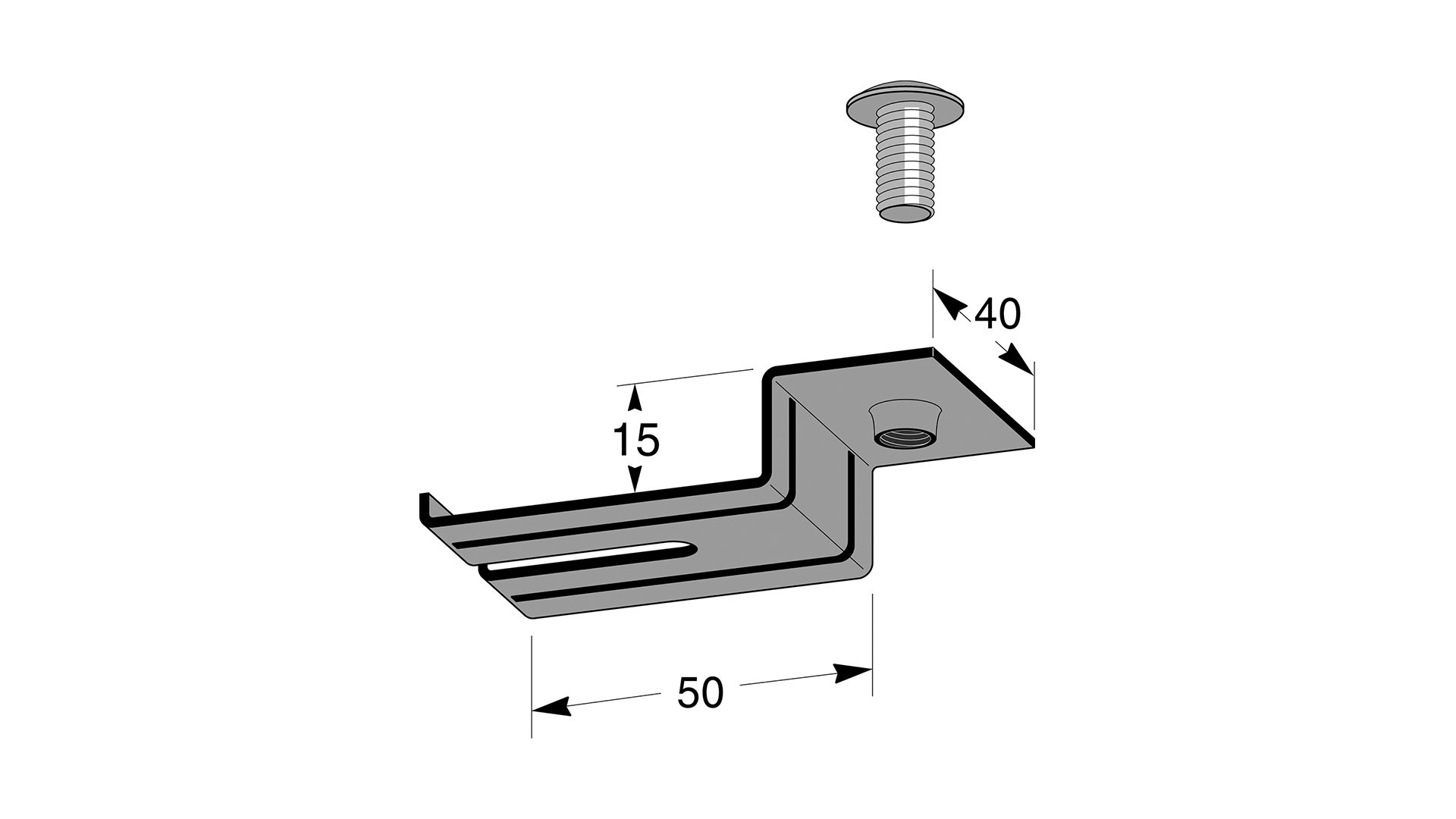

Luminaire bracket 50-200 mm
E-no MP-no 935S

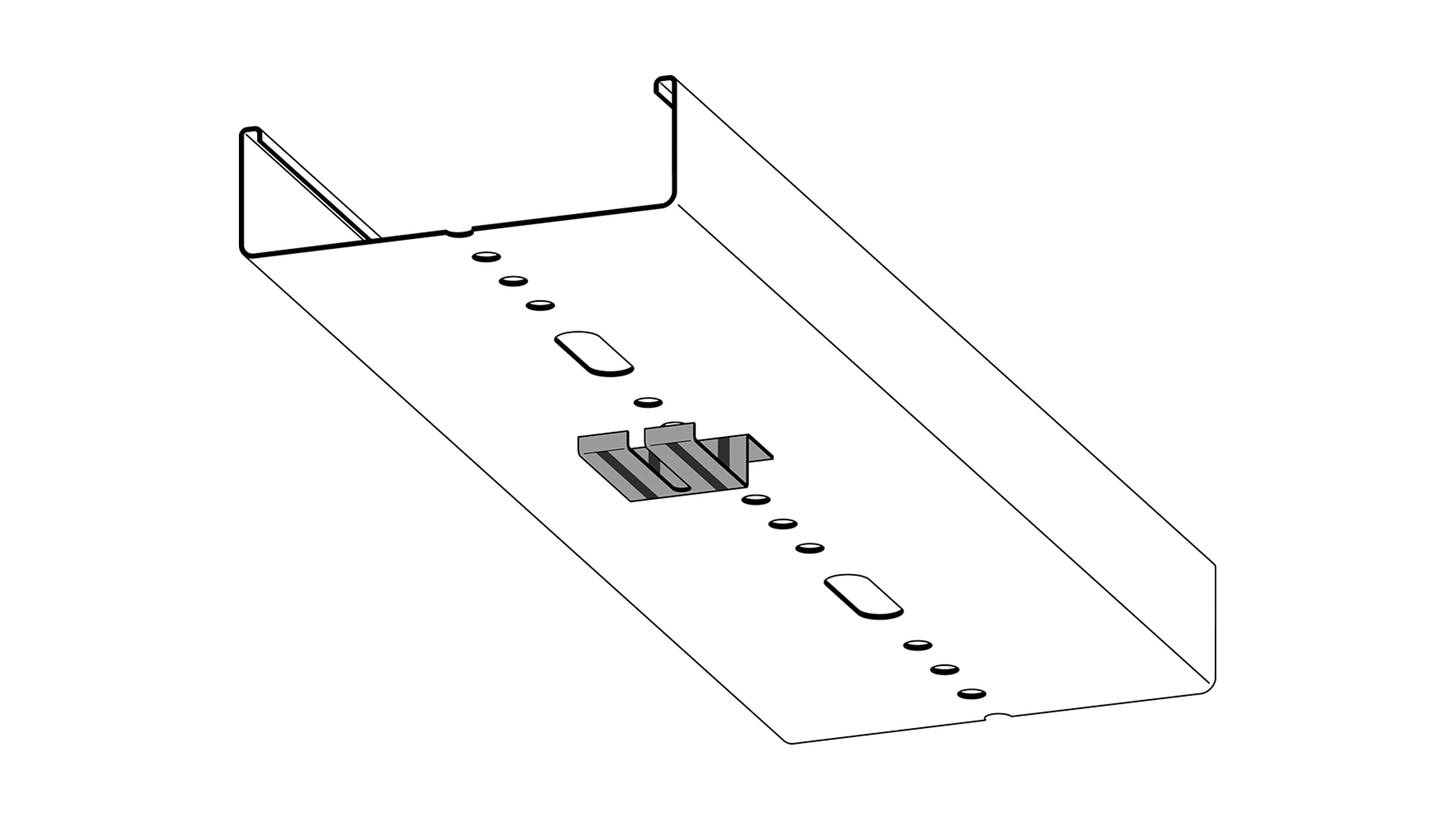

The angled luminaire bracket is screwed to hole system in the luminaire rail. TIP! First fit the bracket on the luminaire and align the fastening holes with the rail’s hole system c-c 25 mm, then screw the luminaire onto the rail. The bracket is supplied with screw M8x16 mm.
Environment class
SurfaceGalvanized sheet 20 µm
Choose Surface
- Galvanized sheet 20 µm
- WhiteSwitch variant
- Z4Switch variant
Dimension50-200
Choose Dimension
- 100
- 150
- 200
- 50
- 50-200
- 75
