Product details

E-no

MP-noTB1740-2

EAN 7394333403939

Dimensions (dxwxh)3000x65x170

Weight kg6.35

SurfaceRAL 9005

Environment class C1

Package pieces2

Climate impact (kgCO2e)27.05

Downloads

Trunking body 170/45-80x65 mm 3 m, Black Ral 9005

E-no MP-no TB1740-2

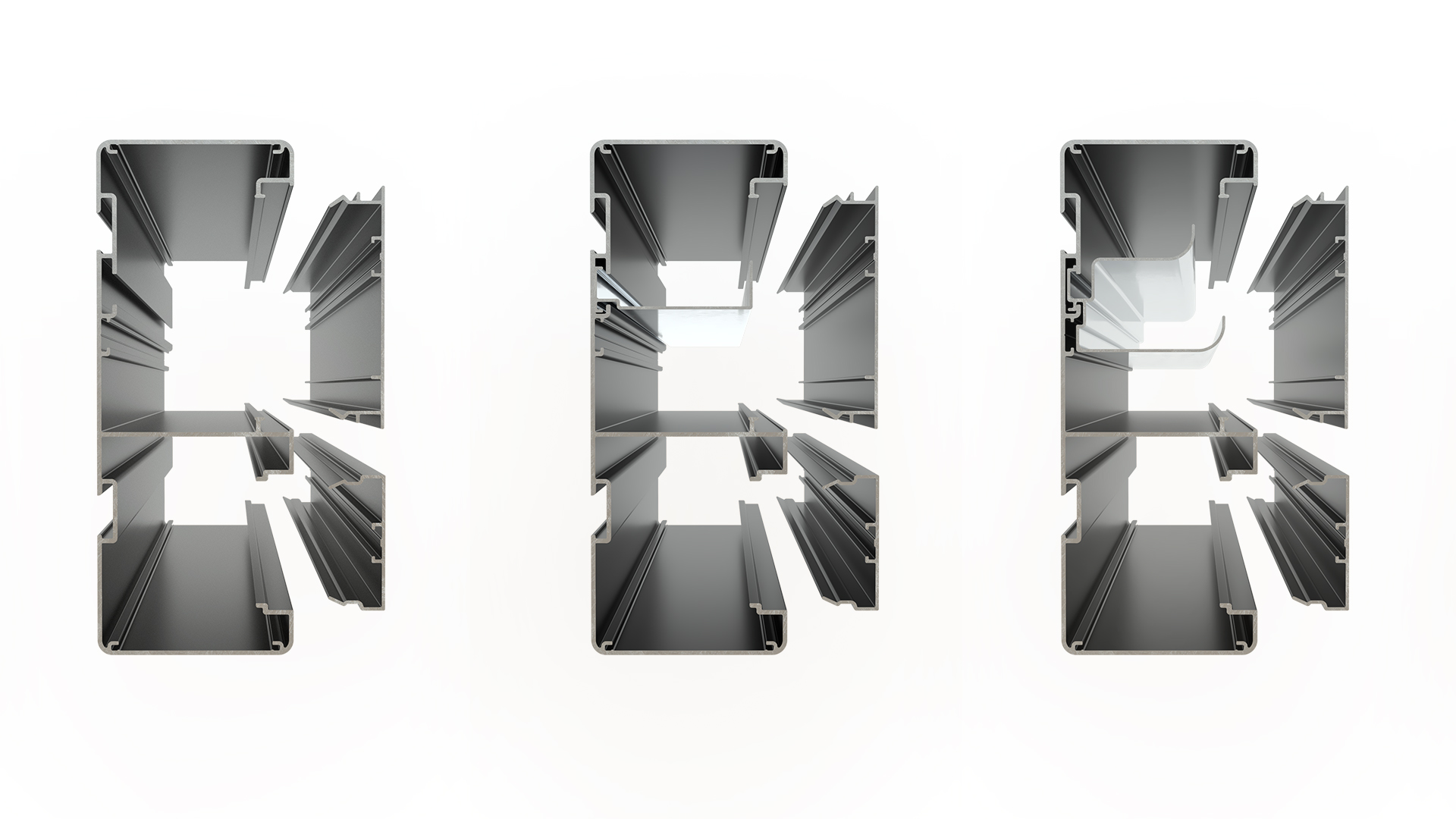

Wall trunking TB 1740 3 m - black finish. The trunking is installed on cantilever arms with the 80 mm slot upwards. The partition wall has a punched hole pattern of 50x21 mm c-c spacing 320 mm. There are slots in the trunking for earthing clamp TBM 1 and dividers TDH1 and TDH2. Hole in back of profile.

Choose Surface

Natural anodised
RAL 9005
RAL 9010

Choose Height

100
120Switch variant
125Switch variant
135
148Switch variant
170
220Switch variant

Choose Model

RecessedSwitch variant
Surface mounted
