Product details
E-no
MP-noTB1740-3
EAN 7394333403328
Dimensions (dxwxh)3000x65x170
Weight kg6.35
SurfaceRAL 9010
Environment class C1
Package pieces2
Downloads

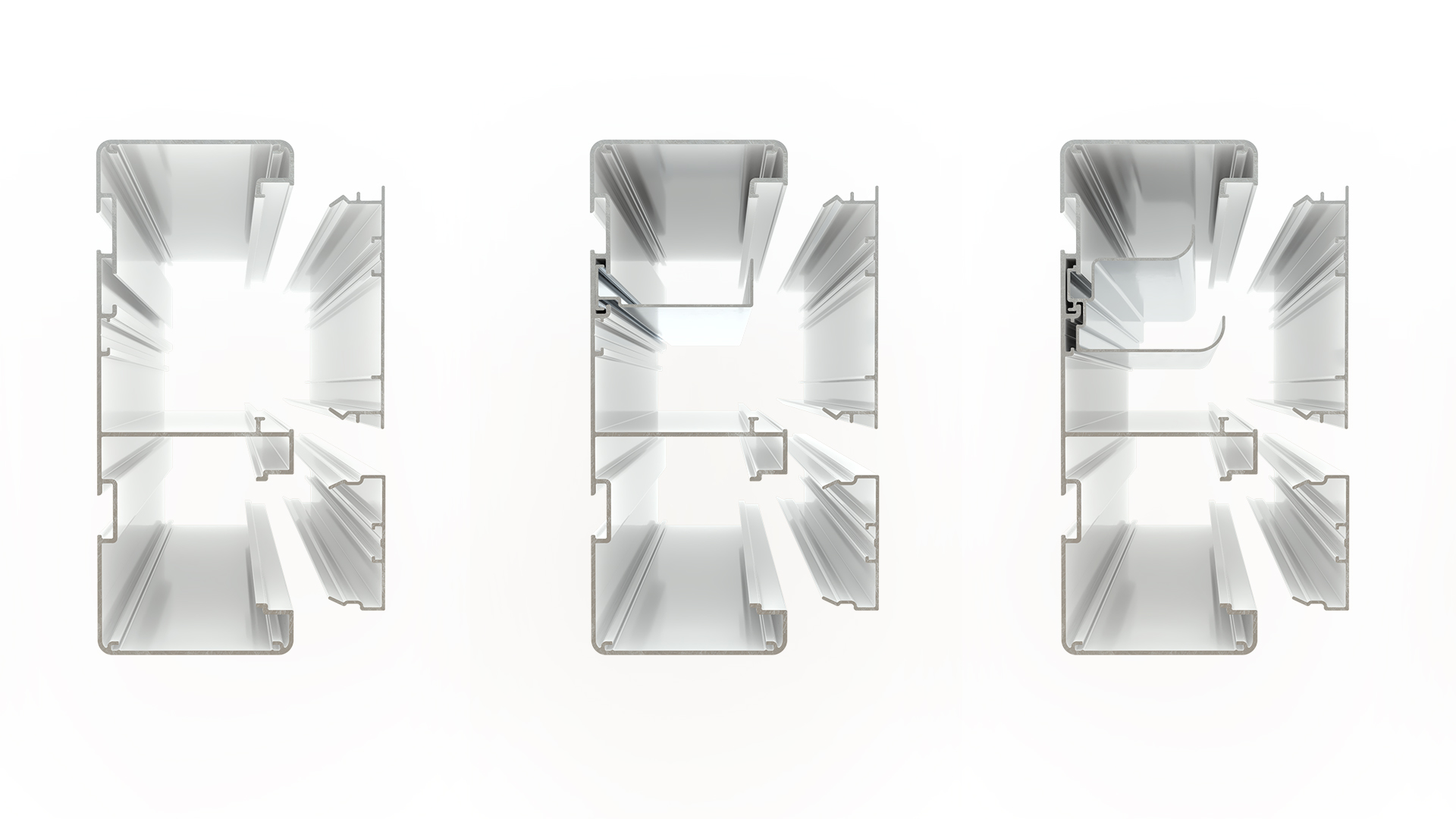

Wall trunking 170/45-80x65 mm 3 m
E-no MP-no TB1740-3
Wall trunking TB 1740 3 m - white finish. The trunking is installed on cantilever arms with the 80 mm slot upwards. The partition wall has a punched hole pattern of 50x21 mm c-c spacing 320 mm. There are slots in the trunking for earthing clamp TBM 1 and dividers TDH1 and TDH2. Hole in back of profile.
SurfaceRAL 9010
Choose Surface
- Natural anodised
- RAL 9005
- RAL 9010
Height170
Choose Height
- 100
- 120
- 125Switch variant
- 135
- 148Switch variant
- 170
- 220
ModelSurface mounted
Choose Model
- RecessedSwitch variant
- Surface mounted
