Roof support

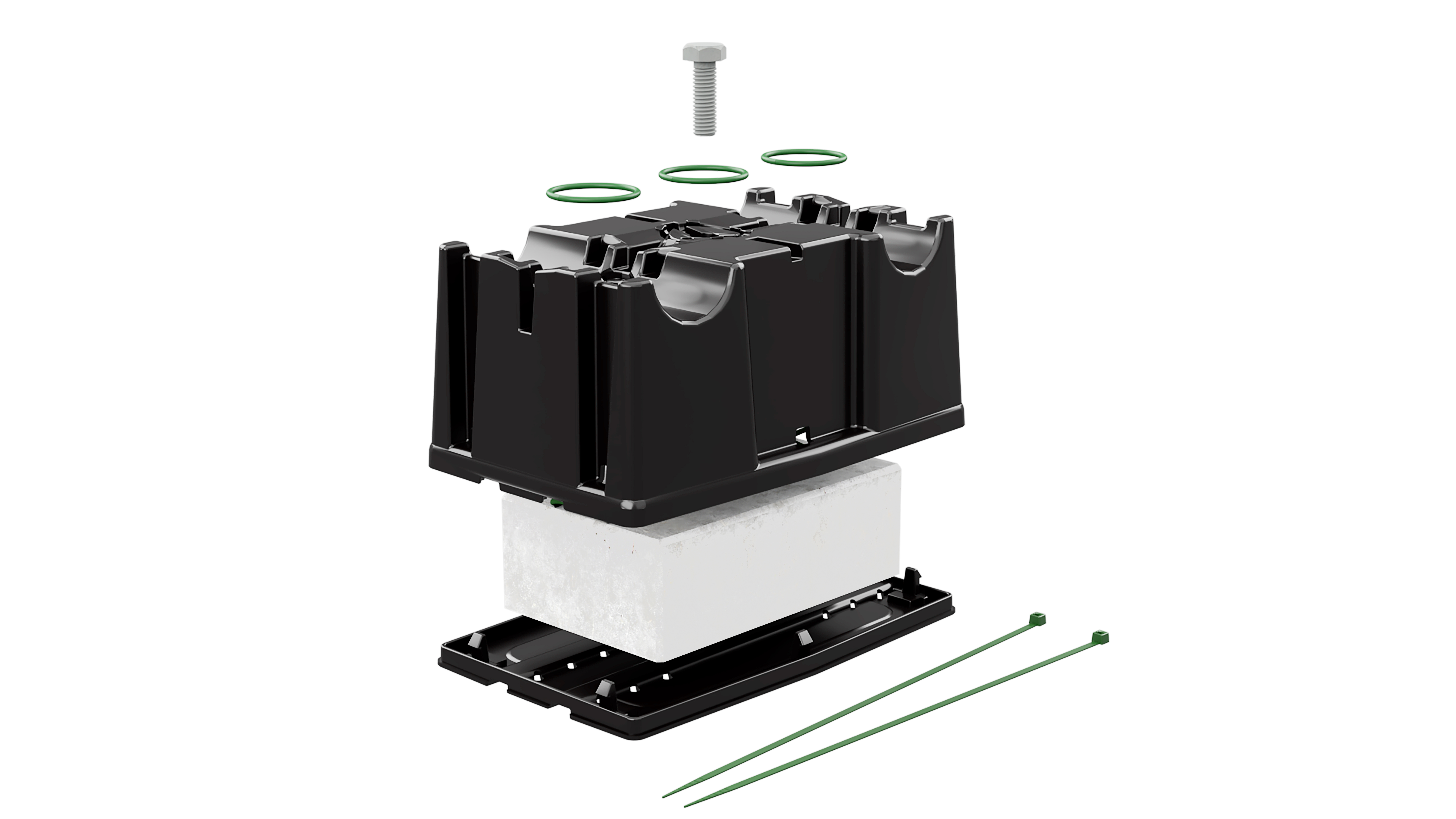

Roof support for cable routing on flat roofs with a slope not exceeding five degrees. M8 screw for universal attachment included. Wire ladder 55–75 mm is screwed in with universal washer MP-731. For wider wire ladders, two parallel roof supports are used. Cable ladder is mounted to the anchor rail which is attached to the roof support at both ends. Mounting with MP angle MP-900 or directly with universal washer MP-731 is possible. Also fits pipes 2x Ø16–32 mm or 1x Ø16–100 mm. Internal weight of approx. 1 kg. Both roof supports and cable ties are UV resistant. To calculate the number of supports, see page https://pvxmountingsystems.com/en/pvx-calculator/
