Product details
E-no
MP-no334S
EAN 7394333124179
Dimensions (dxwxh)147x177x42
Weight kg0.39
SurfaceGalvanized sheet 20 µm
Environment class C2
Climate impact (kgCO2e)1.05
Tray splice 150 mm
E-no MP-no 334S

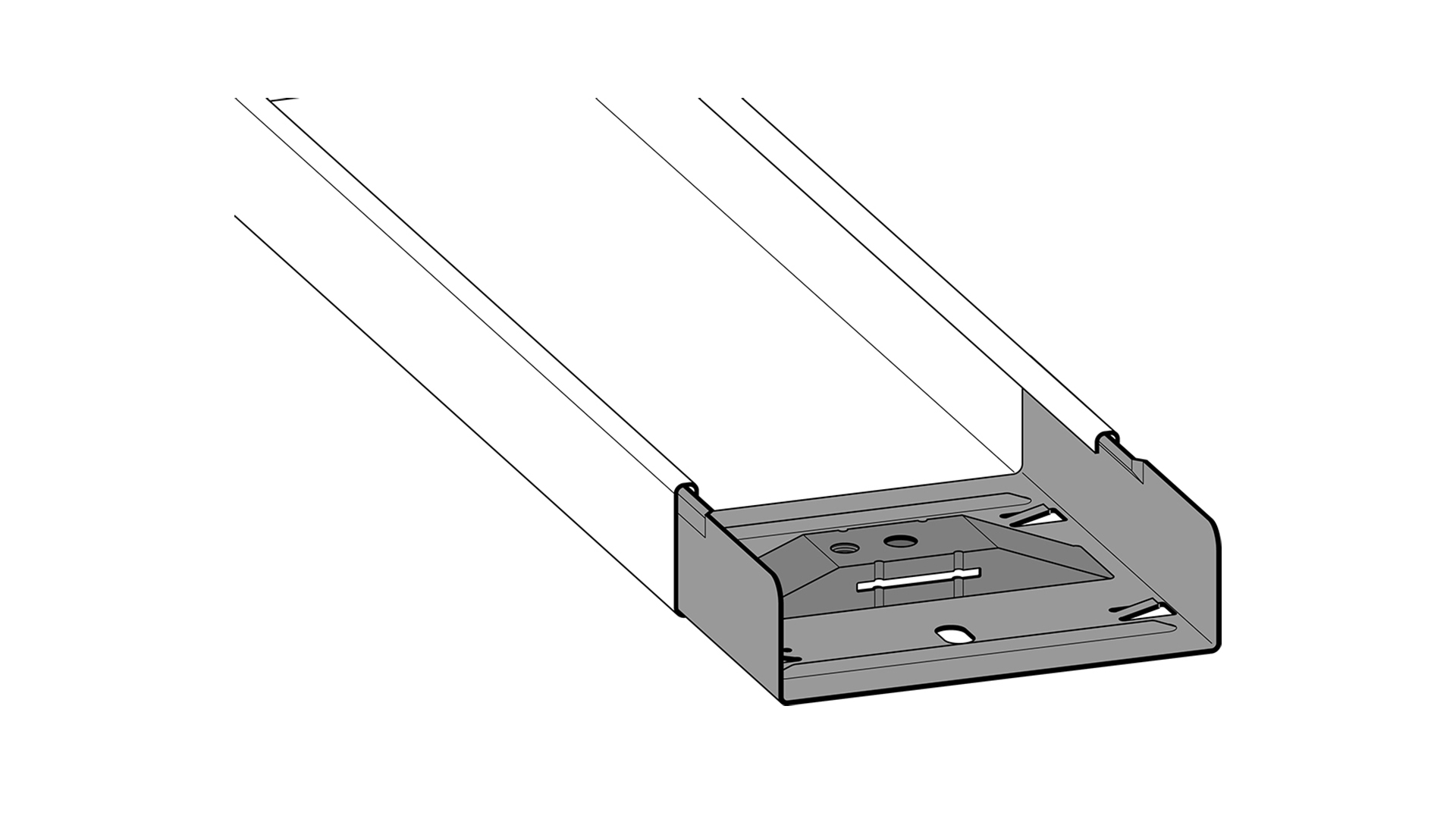

Splice for cable tray and luminaire rail for central or side suspended mounting. Made of Sendzimir galvanised sheet (20 µm) and suitable for environmental class max C2. The splice can be locked with locking clip 906S (11 176 40). The splice is inserted into the end of the tray and supplemented with a pendant bracket or support yoke. Maximum load for the support yoke in the splice: 150 kg with an evenly distributed load. Ultimate failure load: 1.7 times maximum load.
Environment class
SurfaceGalvanized sheet 20 µm
Choose Surface
- Electro-galvanized 10 µmSwitch variant
- Galvanized sheet 20 µm
- Hot-dip galvanized 60 µmSwitch variant
- WhiteSwitch variant
- Z4Switch variant

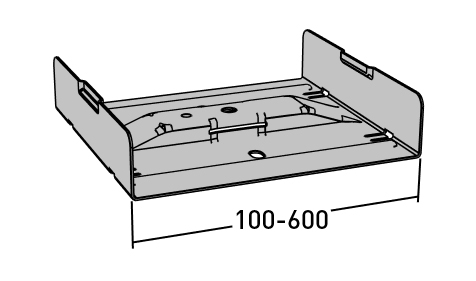

Suitable for 150
Choose Suitable for
- 100
- 150
- 200
- 300
- 400
- 50
- 500
- 600
- 75
- Pendant railSwitch variant
- Perforated cable traySwitch variant
- Threaded rodSwitch variant
Mounting methodInternal
Choose Mounting method
- ExternalSwitch variant
- Internal
