Product details
E-no
MP-no344S
EAN 7394333124209
Dimensions (dxwxh)196x180x42
Weight kg0.47
SurfaceGalvanized sheet 20 µm
Environment class C2
Climate impact (kgCO2e)1.26

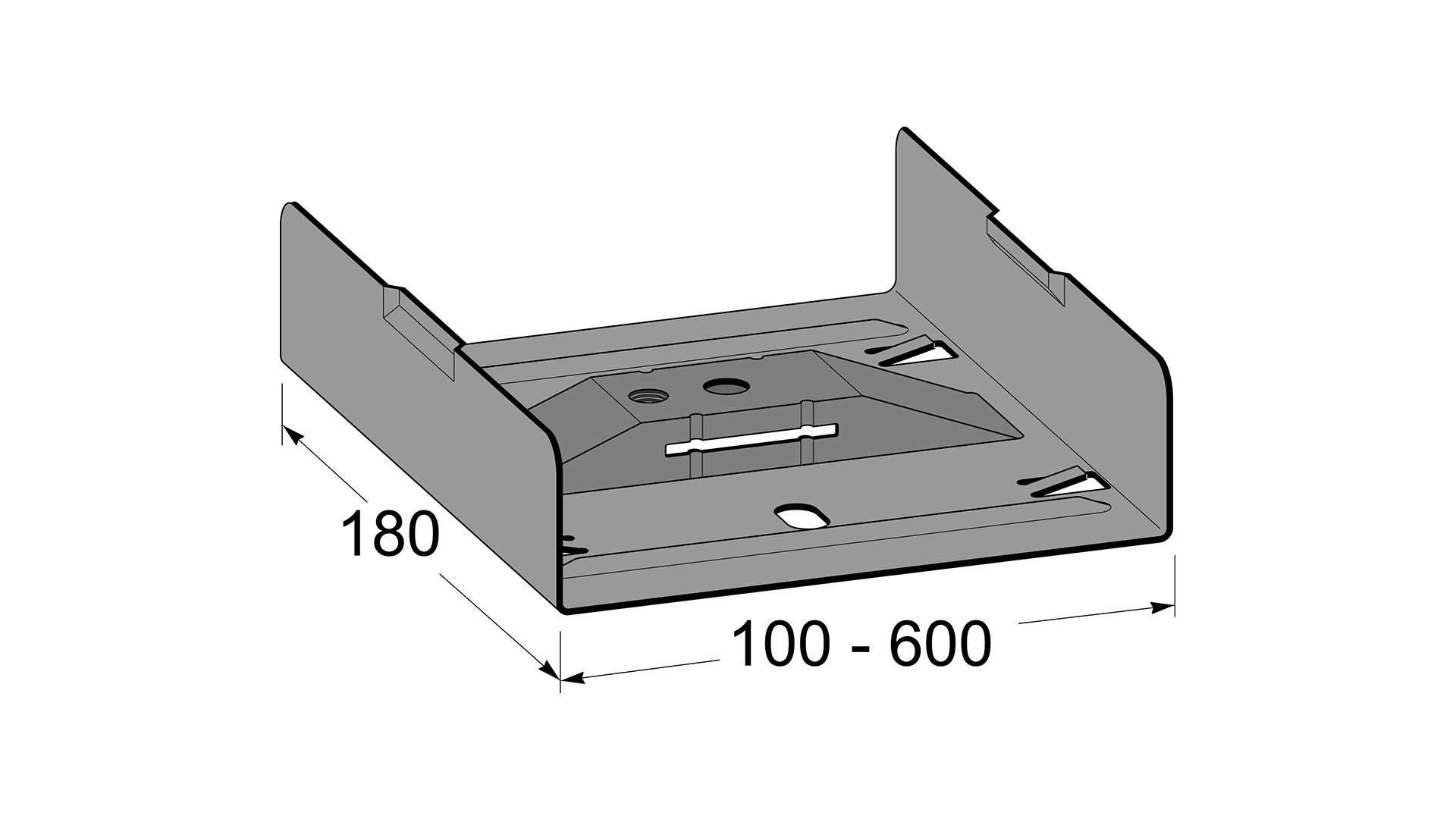

Tray splice 200 mm
E-no MP-no 344S
Splice for cable tray and luminaire rail for central or side suspended mounting. Made of Sendzimir galvanised sheet (20 µm) and suitable for environmental class max C2. The splice can be locked with locking clip 906S (11 176 40). The splice is inserted into the end of the tray and supplemented with a pendant bracket or support yoke. Maximum load for the support yoke in the splice: 150 kg with an evenly distributed load. Ultimate failure load: 1.7 times maximum load.
Environment class
SurfaceGalvanized sheet 20 µm
Choose Surface
- Galvanized sheet 20 µm
- Z4Switch variant
Suitable for 200 mm
Choose Suitable for
- 100 mm
- 150 mm
- 200 mm
- 300 mm
- 400 mm
- 50 mmSwitch variant
- 500 mm
- 600 mm
- 75 mmSwitch variant
Mounting methodCentral or side mounting
Choose Mounting method
- Central mountingSwitch variant
- Central or side mounting
