Product details
E-no
MP-no730Z4
EAN 7394333052779
Dimensions (dxwxh)110x40x10
Weight kg0.06
SurfaceZ4
Environment class C4
Package pieces10
Downloads

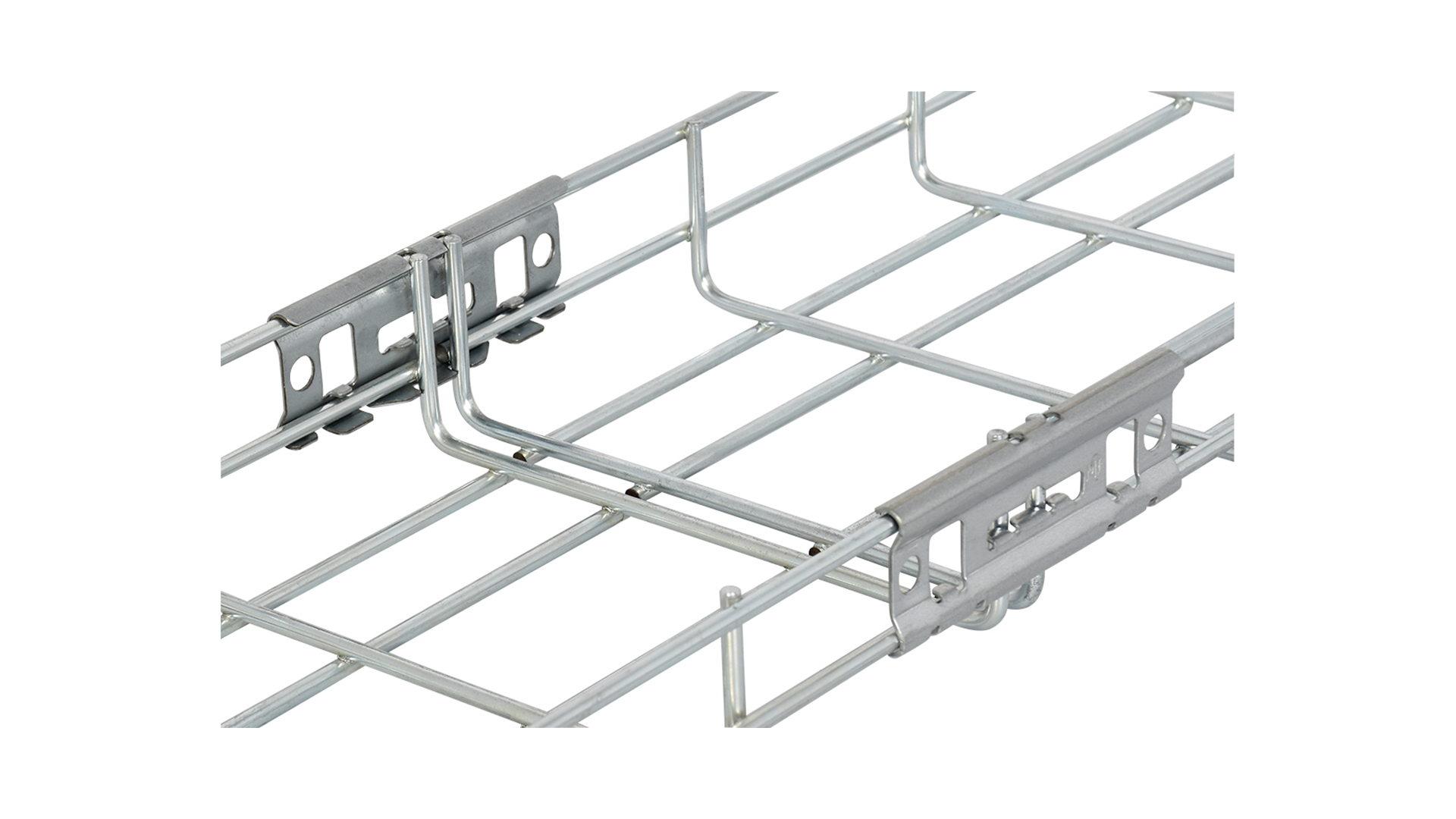

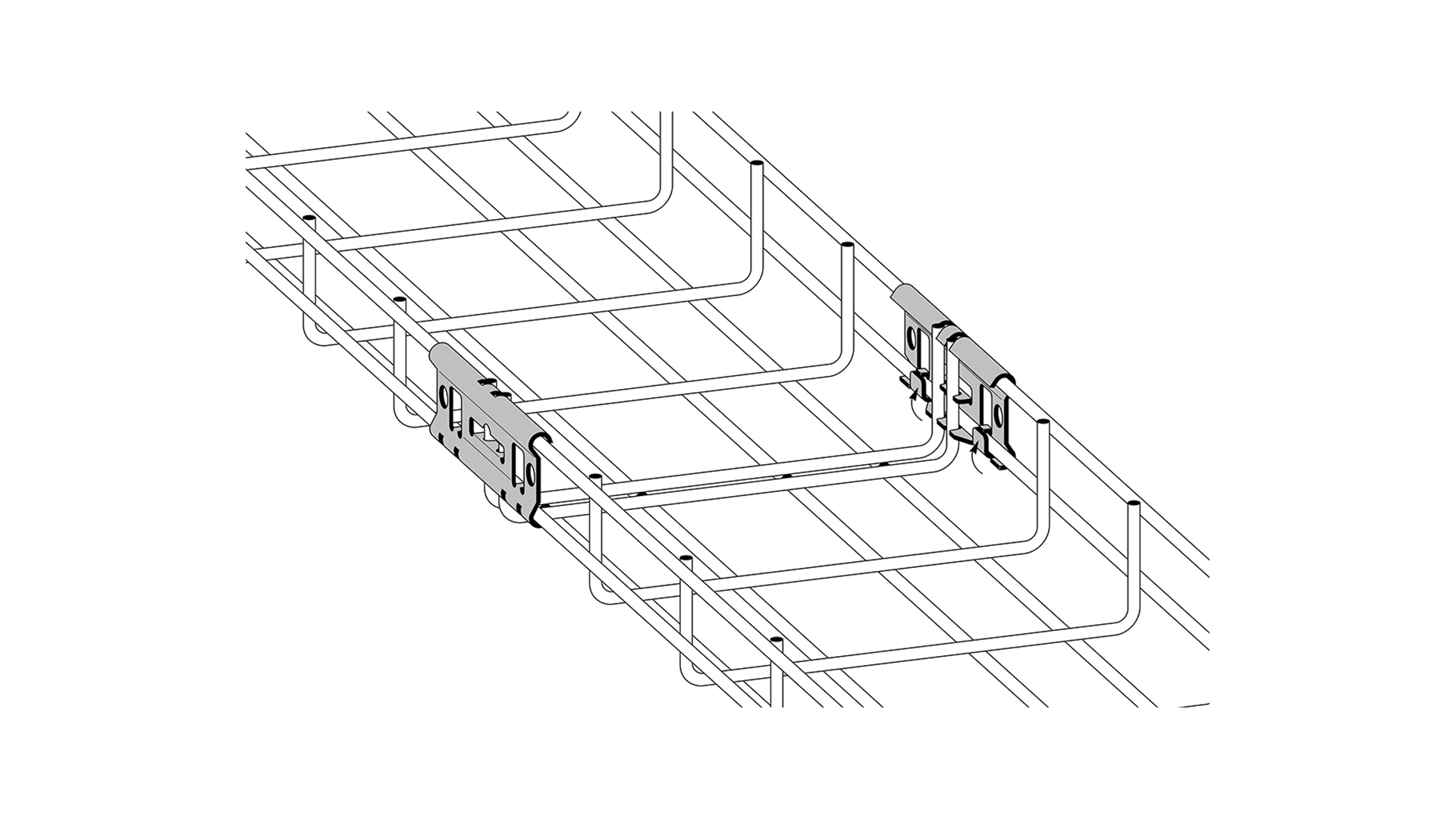

Wire mesh tray splice
E-no MP-no 730Z4
Splice for wire mesh trays. Fitted by folding on the side of the tray after when the locking tongues are bent up with pliers. If necessary the splice can be locked using the MP fastening screw. Approved for equipotential bonding, even outside the screw joint.Can only be used on Z4 wire mesh trays.
Environment class
SurfaceZ4
Choose Surface
- Acid resistant 316LSwitch variant
- Electro-galvanized 10 µmSwitch variant
- Galvanized sheet 20 µmSwitch variant
- Hot-dip galvanized 60 µmSwitch variant
- WhiteSwitch variant
- Z4
Suitable for Wire mesh tray
Choose Suitable for
- Pendant railSwitch variant
- Threaded rodSwitch variant
- Wire mesh tray
Mounting methodExternal
Choose Mounting method
- External
- InternalSwitch variant
