Product details
E-no
MP-no758E
EAN 7394333053011
Dimensions (dxwxh)250x31x23
Weight kg0.26
SurfaceElectro-galvanized 10 µm
Environment class C1
Package pieces10
Downloads

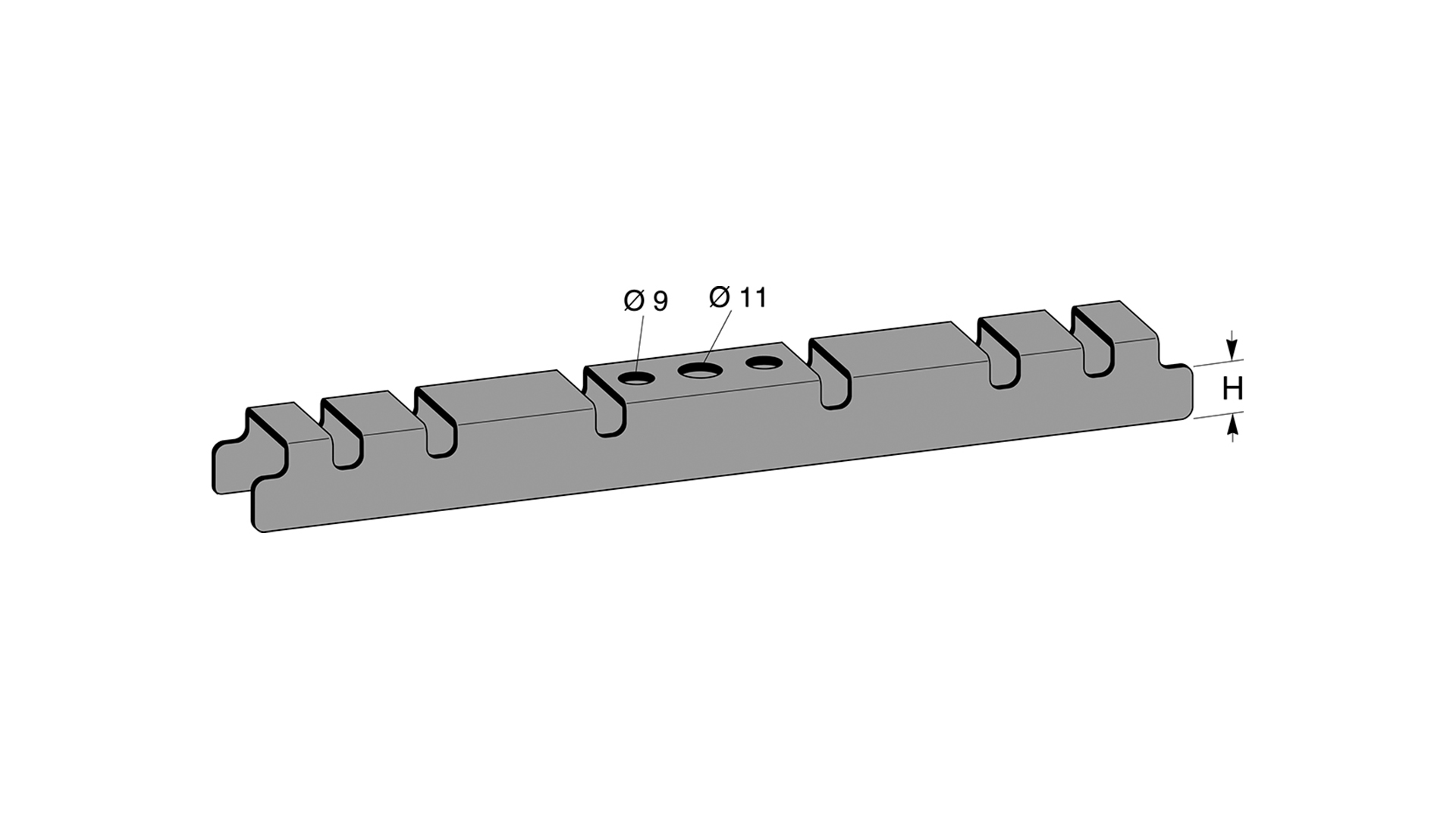

Support for wire mesh yoke 300-400 mm
E-no MP-no 758E

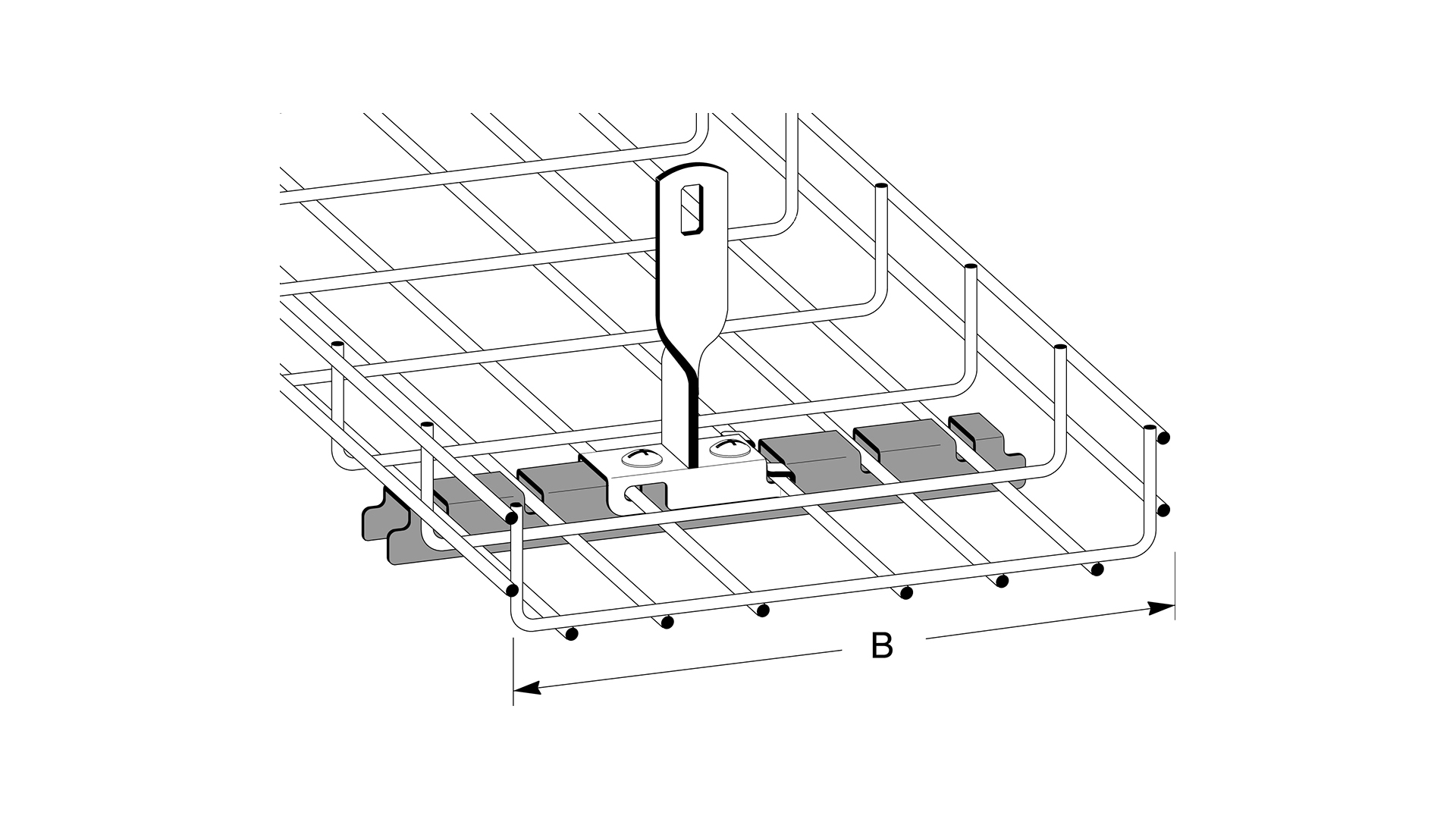

Used together with Support yoke MP-757 for wire mesh trays in the width 300-600 mm, to prevent the wire mesh tray bending with heavy loads. The support is screwed to the support yoke with fastening screw MP-937 after the wire mesh tray has been fitted in the support yoke.
Environment class
SurfaceElectro-galvanized 10 µm
Choose Surface
- Acid resistant 316LSwitch variant
- Electro-galvanized 10 µm
- Hot-dip galvanized 60 µmSwitch variant
- WhiteSwitch variant
Suitable for 300-400
Choose Suitable for
- 300-400
- 500-600
MountingInternal
