Product details
E-no
MP-no102V
EAN 7394333900186
Dimensions (dxwxh)3000x200x56
Weight kg5.17
SurfaceWhite
Environment class C2
Package pieces6
Downloads
Cable ladder 3 m 200 mm
E-no MP-no 102V

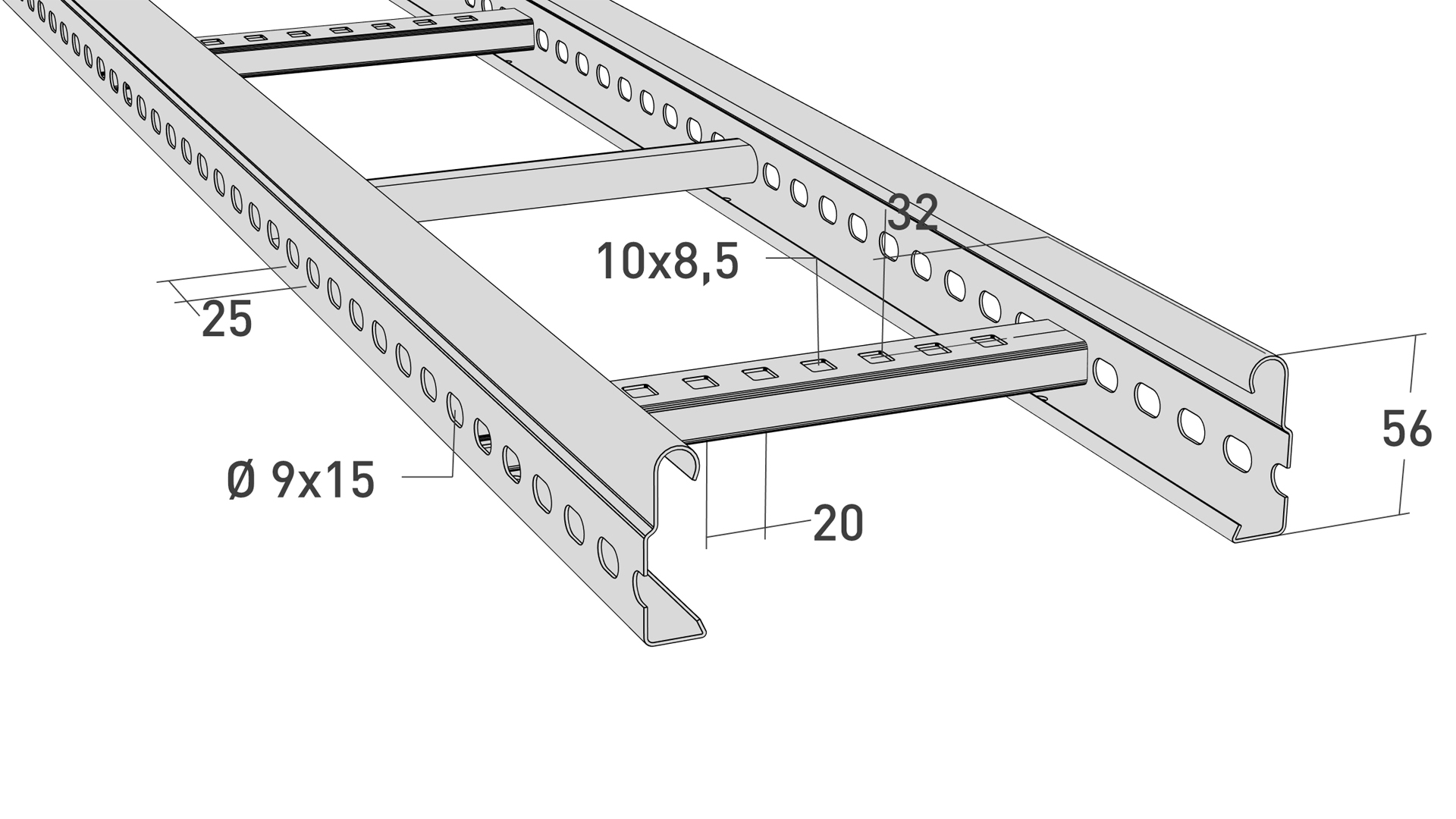

White-painted cableladder for indoor installations. The ladders are manufactured in hot-dip galvanized (20 µm) steel sheet, subsequently powder-coated in white. Suitable for environmental class up to C2. The perforated side allows for the installation of branches, angle brackets, etc. Additionally, the profile shape enables cables up to 19 mm in diameter to utilize over 98% of the width of the tray. The rungs are perforated (except for one closed end at each) and have a center-to-center distance of 250 mm. Breaking load: greater than or equal to 1.7 times the maximum load.
Environment class
SurfaceWhite
Choose Surface
- Galvanized sheet 20 µm
- White
Depth3000
Choose Depth
- 3000
- 6000Switch variant
Width200
Choose Width
- 200
- 300
- 400
- 500
- 600
