Product details
E-no
MP-no314Z4
EAN 7394333119014
Dimensions (dxwxh)180x72x42
Weight kg0.26
SurfaceZ4
Environment class C4
Package pieces10
Climate impact (kgCO2e)0.70

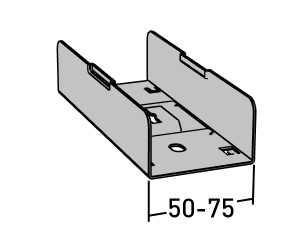

Tray splice 75 mm
E-no MP-no 314Z4
Splice for cable tray and luminaire rail for centrally suspended assembly. Made of a zinc-magnesium alloy (25 µm) and suitable for environmental class max C4. Built-in friction locks prevent the splice from slipping out of the rail, but can be supplemented with bolt set M8x16 mm (11 156 80) for extra security. The pendant bracket is inserted under the splice before it is mounted in the rail. Maximum load for the support yoke in the splice: 150 kg with an evenly distributed load. Ultimate failure load: 1.7 times maximum load.
Environment class
SurfaceZ4
Choose Surface
- Electro-galvanized 10 µmSwitch variant
- Galvanized sheet 20 µmSwitch variant
- Hot-dip galvanized 60 µmSwitch variant
- WhiteSwitch variant
- Z4
Suitable for 75
Choose Suitable for
- 100Switch variant
- 150Switch variant
- 200Switch variant
- 300Switch variant
- 400Switch variant
- 50Switch variant
- 500Switch variant
- 600Switch variant
- 75
- Pendant railSwitch variant
- Perforated cable traySwitch variant
- Threaded rodSwitch variant
Mounting methodInternal
Choose Mounting method
- ExternalSwitch variant
- Internal
