Product details
E-no
MP-no340S
EAN 7394333100661

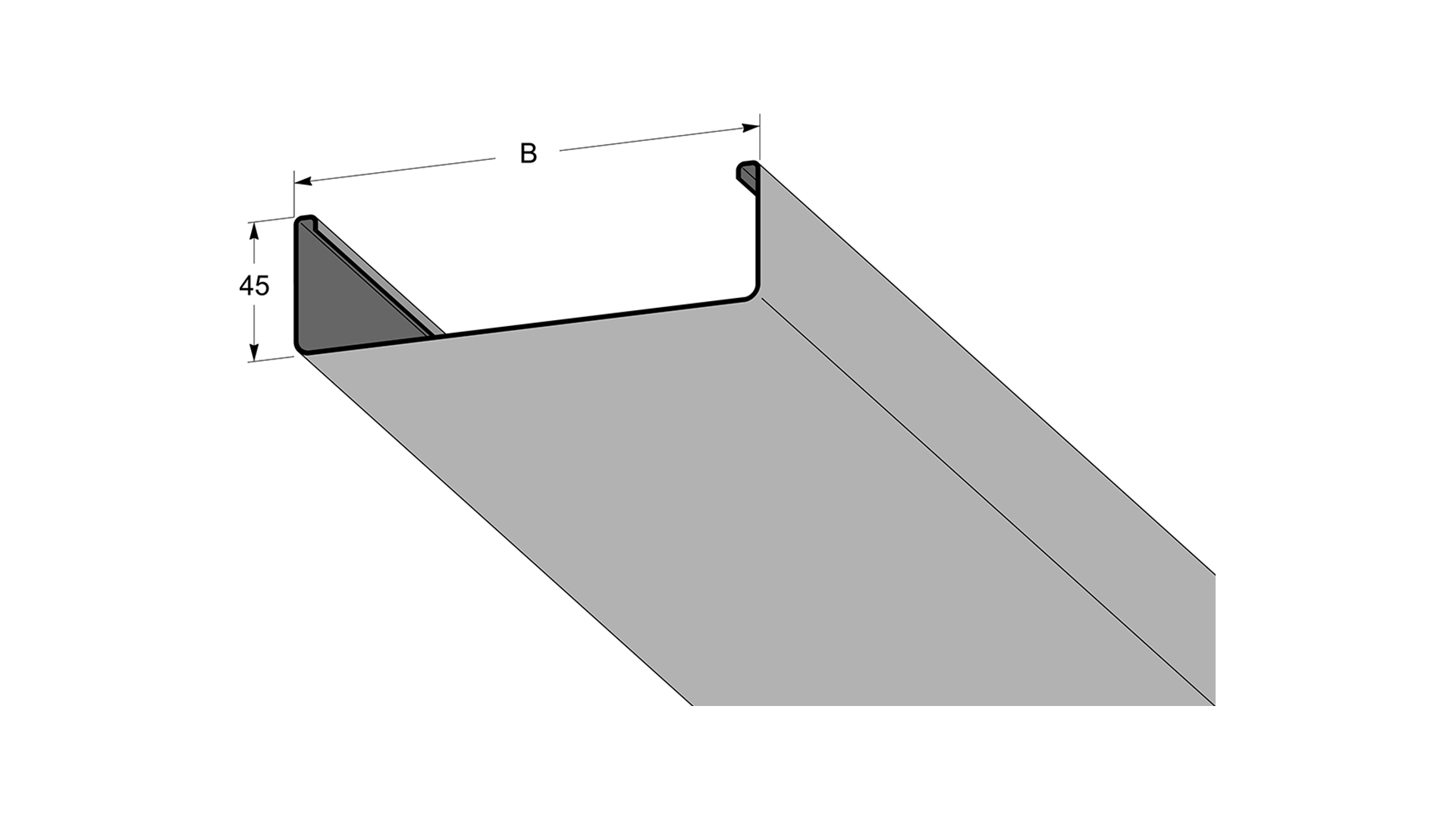

Dimensions (dxwxh)3000x200x45
Weight kg7.18
SurfaceGalvanized sheet 20 µm
Environment class C2
Package pieces4
Downloads
Unperforated tray 3 m 200 mm
E-no MP-no 340S

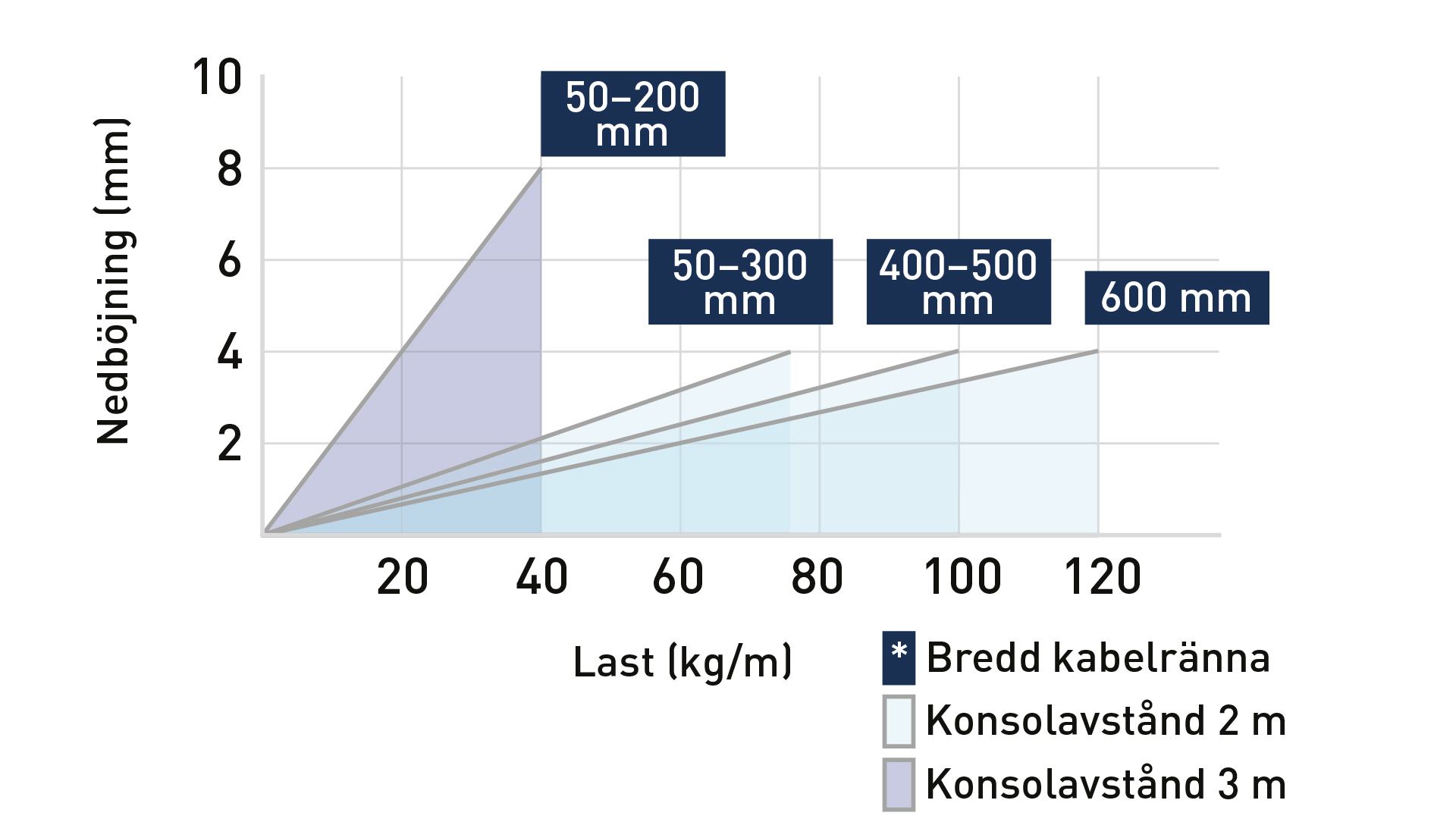

Unperforated cable tray. Painted trays are supplied with internally paint-free ends. Other lengths and colours quoted on request. The Sendzimir process is used to prevent corrosion and may result in slight variations in colour/appearance. Bracket distance is determined by the length of the rail. 2 m rail = C-C 2 m and 3 m rail C-C = 3 m. 6 m rail needs a suspension in the middle. These values apply at normal load.
Environment class
SurfaceGalvanized sheet 20 µm
Choose Surface
- Black
- Galvanized sheet 20 µm
- White
Width200
Choose Width
- 50
- 75
- 100
- 150
- 200
- 300
- 400
- 500
- 600
