Product details

E-no
MP-no194Z
EAN 7394333003351
Dimensions (dxwxh)6000x400x100
Weight kg35.9
SurfaceHot-dip galvanized 60 µm
Environment class C4
Package pieces12
Climate impact (kgCO2e)101.60

Cable ladder FZ 6 m 400 mm

E-no MP-no 194Z

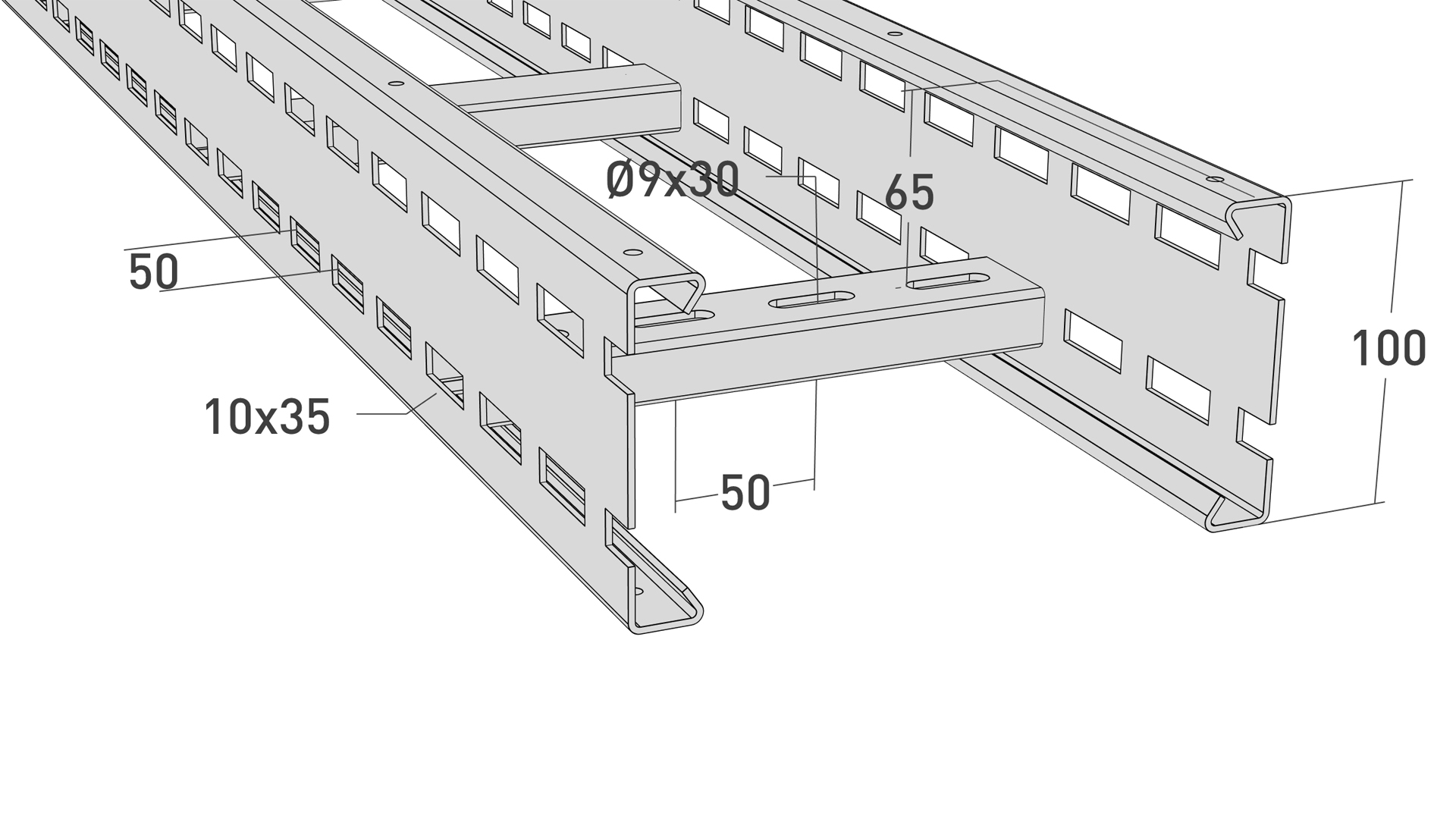

An extra reinforced cable ladder for really tough environments, such as heavy process industry. Also used for long console distances - up to 6 m. The cable ladder is 6 m long, hot-dip galvanized (60 µm) and used in environmental class max C4. The construction of the cable ladder allows the use of cables over the entire width up to 40 mm cable diameter. Rung distance: c-c 250 mm. Ultimate failure load: more than or equal to 1.7 times the maximum load.

Environment class

C4
SurfaceHot-dip galvanized 60 µm
Depth6000
Width400

Choose Width

  • 200
  • 300
  • 400
  • 500
  • 600
TypeReinforced
