Product details
E-no
MP-no195Z
EAN 7394333013633
Dimensions (dxwxh)6000x500x100
Weight kg38.1
SurfaceHot-dip galvanized 60 µm
Environment class C4
Package pieces12
Climate impact (kgCO2e)107.82
Cable ladder FZ 6 m 500 mm
E-no MP-no 195Z

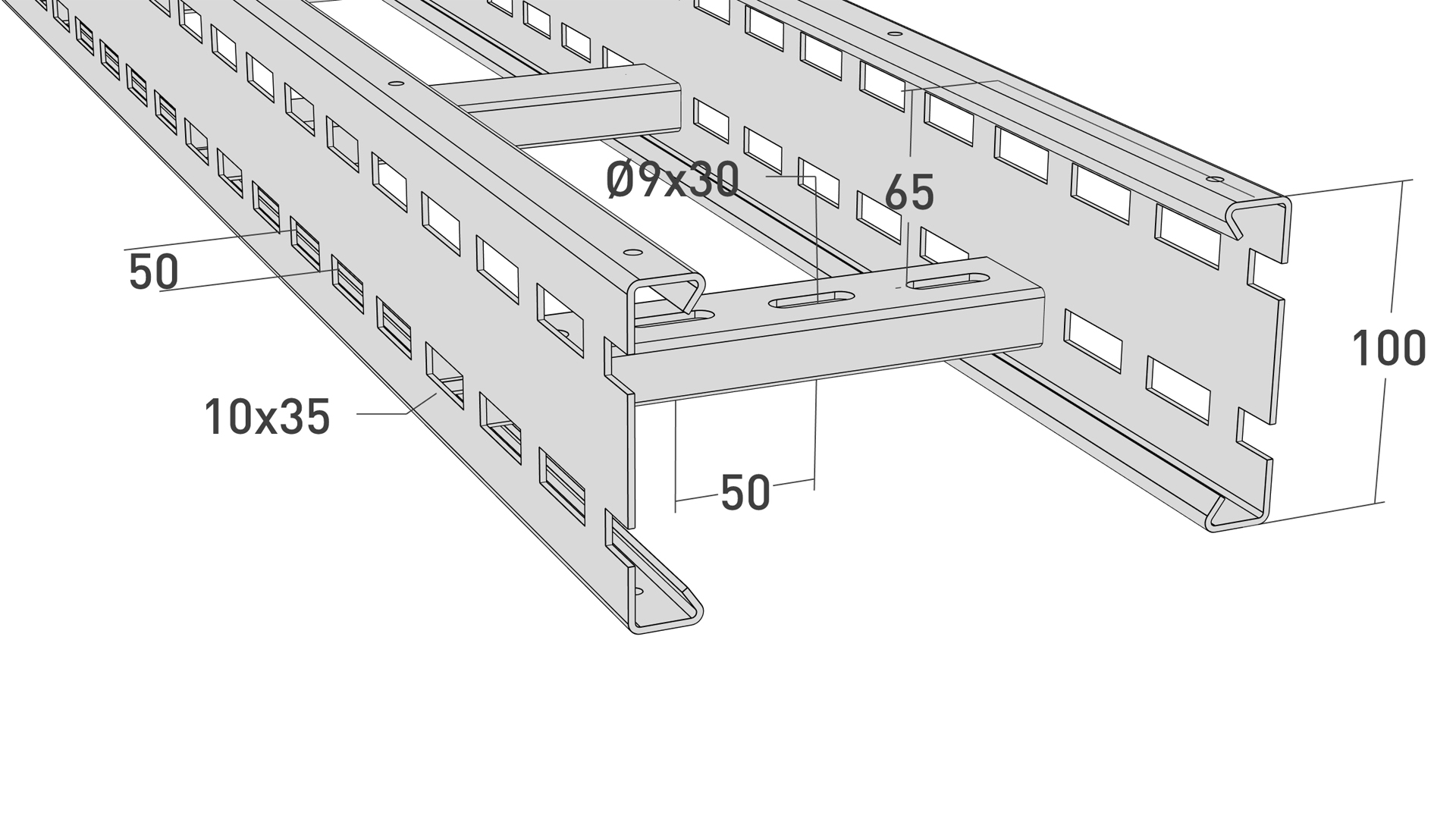

An extra reinforced cable ladder for really tough environments, such as heavy process industry. Also used for long console distances - up to 6 m. The cable ladder is 6 m long, hot-dip galvanized (60 µm) and used in environmental class max C4. The construction of the cable ladder allows the use of cables over the entire width up to 40 mm cable diameter. Rung distance: c-c 250 mm. Ultimate failure load: more than or equal to 1.7 times the maximum load.
Environment class
SurfaceHot-dip galvanized 60 µm
Depth6000
Width500
Choose Width
- 200
- 300
- 400
- 500
- 600
TypeReinforced
