Product details
E-no
MP-no720Z4
EAN 7394333050720
Dimensions (dxwxh)2500x75x58
Weight kg2
SurfaceZ4
Environment class C4
Package pieces6
Climate impact (kgCO2e)5.40
Downloads

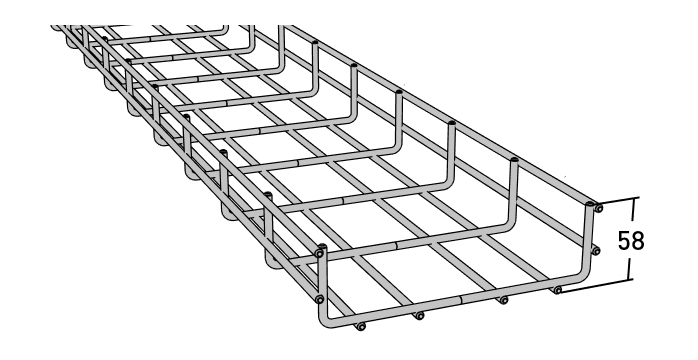

Wire mesh tray 75 mm
E-no MP-no 720Z4
Wire mesh tray for flexible installations. The diameter of the wires is 4 mm. The wire mesh tray is made of a zinc-magnesium alloy (25 µm) and is suitable for environmental class max C4. The advantage of this material is that it self-heals, for example when cut, and is a more durable alternative to traditional hot-dip galvanising. Several of the accessories are shared with the rest of the MP range. Can be ordered in any painted colour.
Environment class
SurfaceZ4
Choose Surface
- Acid resistant 316LSwitch variant
- Electro-galvanized 10 µmSwitch variant
- WhiteSwitch variant
- Z4
Width75
Choose Width
- 55
- 75
- 120
- 200
- 300
- 400
- 500
- 600
Height58
Choose Height
- 58
- 110Switch variant
