Product details

E-no
MP-no723Z4
EAN 7394333051383
Dimensions (dxwxh)2500x200x58
Weight kg4.2
SurfaceZ4
Environment class C4
Package pieces4
Climate impact (kgCO2e)11.34

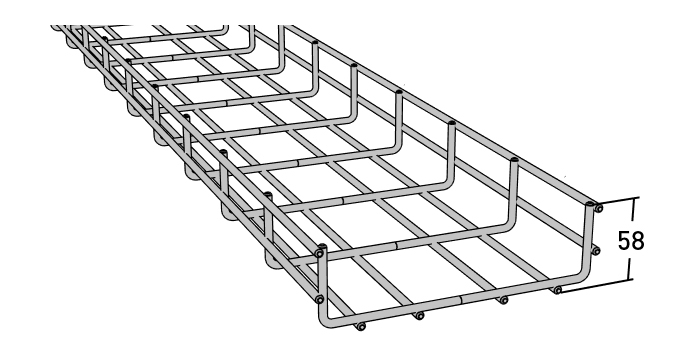

Wire mesh tray 200 mm

E-no MP-no 723Z4

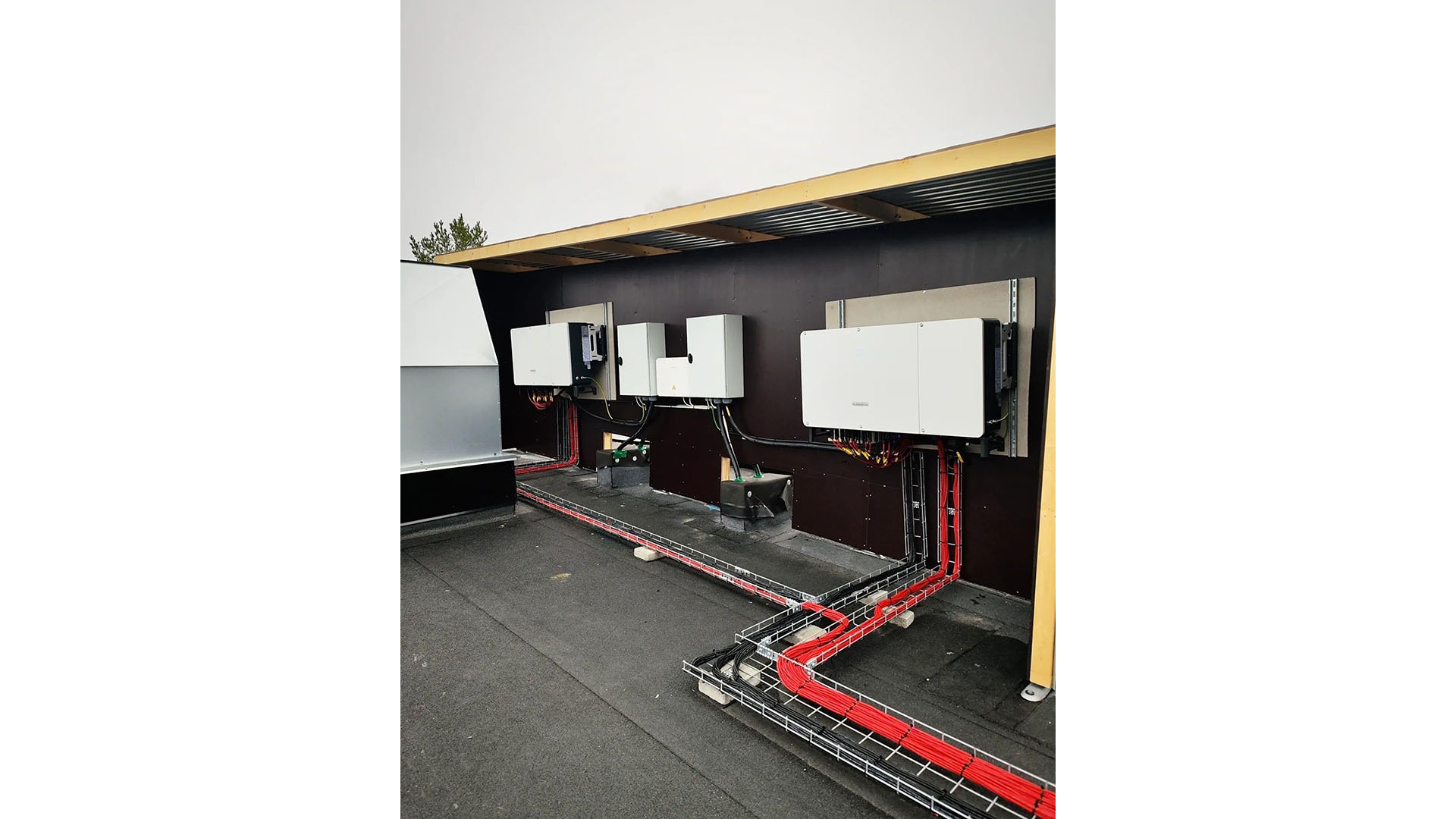

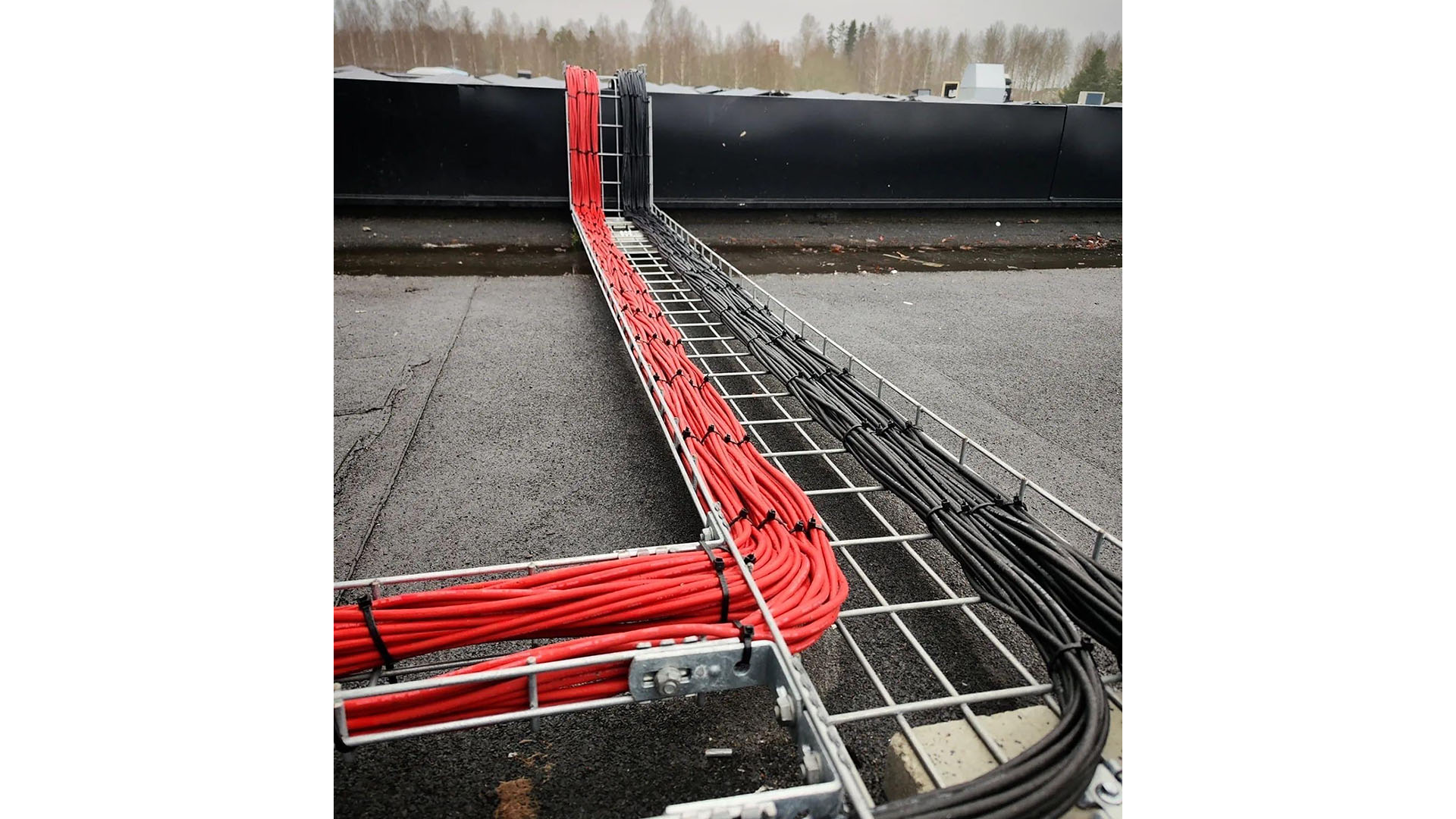

Wire mesh tray for flexible installations. The diameter of the wires is 5 mm. The wire mesh tray is made of a zinc-magnesium alloy (25 µm) and is suitable for environmental class max C4. The advantage of this material is that it self-heals, for example when cut, and is a more durable alternative to traditional hot-dip galvanising. Several of the accessories are shared with the rest of the MP range. Can be ordered in any painted colour.

Environment class

C4
SurfaceZ4

Choose Surface

  • Acid resistant 316LSwitch variant
  • Electro-galvanized 10 µmSwitch variant
  • WhiteSwitch variant
  • Z4
Width200

Choose Width

  • 55
  • 75
  • 120
  • 200
  • 300
  • 400
  • 500
  • 600
Height58

Choose Height

  • 58
  • 110
